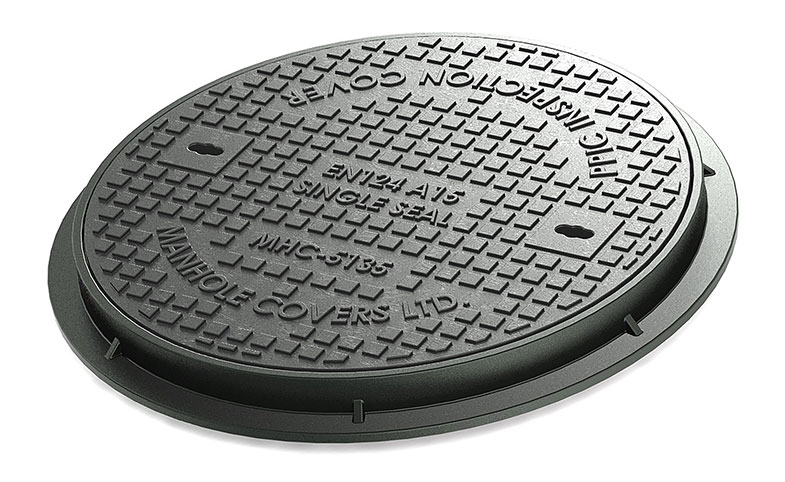

A15 PPIC Cast Iron Cover

A15 Cast Iron Cover with Plastic Frame, Single Seal
mhc_icon_search_dark@1x
Enlarge
Product Details
Areas which can only be used by pedestrians and pedal cyclists.
mhc_icon_class_A15@1x
A15
5 Tonnes
mhc_icon_class_A15@1x
A15
5 Tonnes

This A15 cast iron manhole cover is appropriate for foot traffic and slow moving cars.

Specification
  • mhc_icon_check@1x A15 to accept foot traffic and slow moving cars
  • mhc_icon_check@1x 450mm units provide choice of polypropylene or cast iron frames
  • mhc_icon_check@1x Manufactured with spigot ring under frame to suit PPIC inspection chambers
  • mhc_icon_check@1x Covers available locked with 2 countersunk stainless steel screws
  • mhc_icon_check@1x Lifting keys (MHC Ref. LK5200)
Available Sizes
Product code Clear Opening (mm) Over Frame (mm) Frame Depth (mm) Loading Frame Type
MHC-5135
450 dia 550 30 a15 polypropylene
MHC-5150
600 dia 682 42 a15 cast iron
Available Sizes
MHC-5135
Clear Opening (mm) 450 dia
Over Frame (mm) 550
Frame Depth (mm) 30
Loading a15
Frame Type polypropylene
MHC-5150
Clear Opening (mm) 600 dia
Over Frame (mm) 682
Frame Depth (mm) 42
Loading a15
Frame Type cast iron
Any questions, contact our expert team on 01296 668850
