B125 Single Seal PPIC Cover

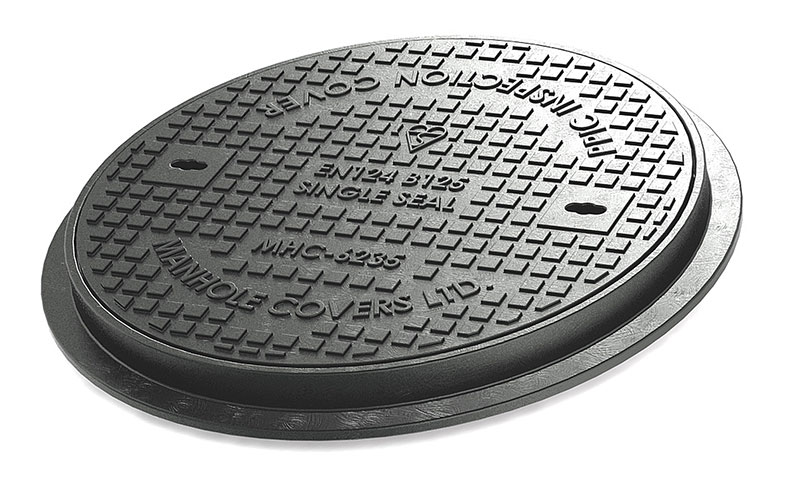

B125 Ductile Iron Cover & Frame, Single Seal
mhc_icon_search_dark@1x
Enlarge
Product Details
Footways, pedestrian areas and comparable areas, car parks, or car parking decks.
mhc_icon_class_B125@1x
B125
12.5 Tonnes
mhc_icon_class_B125@1x
B125
12.5 Tonnes

This B125 PPIC cover is appropriate for light traffic. It has a single seal and is manufactured with spigot ring under frame to suit PPIC inspection chambers.

Specification
  • mhc_icon_check@1x B125 loading to accept light traffic
  • mhc_icon_check@1x Single Seal
  • mhc_icon_check@1x BSI Kitemark
  • mhc_icon_check@1x Manufactured with spigot ring under frame to suit PPIC inspection chambers
  • mhc_icon_check@1x Covers available locked with 2 countersunk stainless steel screws
  • mhc_icon_check@1x Lifting keys (MHC Ref. LK5200)
Available Sizes
Product code Clear Opening (mm) Over Frame (mm) Frame Depth (mm) Seal Type Loading
MHC-6230
300mm dia 390 25 single seal b125
MHC-6235
450 dia 550 25 single seal b125
Available Sizes
MHC-6230
Clear Opening (mm) 300mm dia
Over Frame (mm) 390
Frame Depth (mm) 25
Seal Type single seal
Loading b125
MHC-6235
Clear Opening (mm) 450 dia
Over Frame (mm) 550
Frame Depth (mm) 25
Seal Type single seal
Loading b125
Any questions, contact our expert team on 01296 668850
