Brass Edged

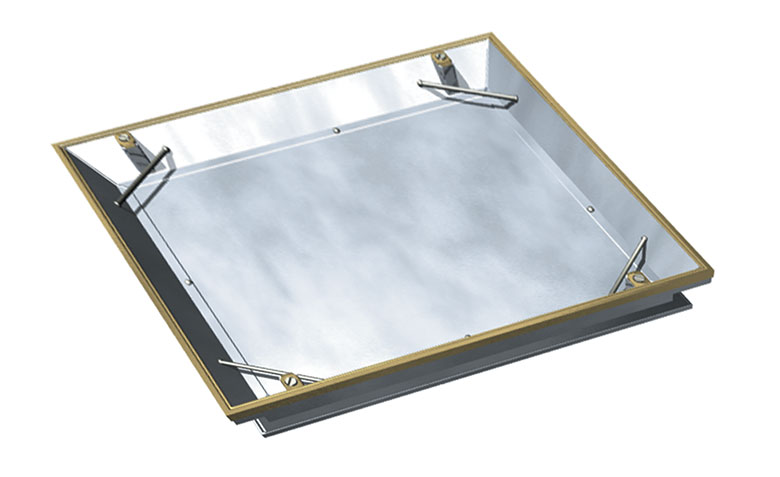

Recessed Double Seal Locking with Brass Edge finish
mhc_icon_search_dark@1x
Enlarge
Product Details
Areas with vehicular traffic up to 10 Tonnes (GLVW) or 2.5 Tonnes (SMWL) i.e. car parks and service areas, pedestrian areas where occasional vehicular access is likely.
mhc_icon_trolley_2
AAA
10 Tonnes
mhc_icon_trolley_2
AAA
10 Tonnes

Application: Suitable for private and public areas such as office building reception halls, hotel corridors and supermarket floors where an enhanced aesthetic floor finish is of primary importance. The 7100BE/SSE Series accepts most floor finish infills such as screed, tile, carpet tile and terazzo (for carpet finishes we recommend the aluminium Alulite Series - please ask the sales office for details).

Construction: As 7100 Series with specially extruded brass or stainless steel angles fitted to top edge of cover and frame to ensure enhanced finish to visible edges. Edge angles hand fitted and finished, cover edges neatly mitred. Lifting and locking points similary finished in edging material. Locking covers have matching brass or stainless steel screws. Multiple units come complete with removable support beams and support pockets. All units are airtight. Brass edge and stainless steel edge units are supplied double seal and locking as standard.

Finish: Hot dipped galvanised to BS EN ISO 1461 as standard.

Manufacture: ISO9001 Quality system. F.A.C.T.A. (Fabricated Access Cover Trade Association) member.

Load Rating: F.A.C.T.A. Class AAA - 10 Tonne G.L.V.W. (Gross Laden Vehicle Weight). Full loading achieved infilled with Grade C25 concrete.

Ordering: Please state required MHC Order Code and any optional extras i.e. MHC-7124/BE = 600x450mm/Brass Edge.

Options
  • mhc_icon_check@1x Brass Edging = suffix |BE
  • mhc_icon_check@1x Stainless Steel Edging = MHC suffix |SSE
  • mhc_icon_options_lifting keys@1x Allen key head security screws = suffix |AK
  • mhc_icon_options_anti-terrorist@1x Ministry of Defence approved security screws = MHC suffix |MOD
Available Sizes
Product code Clear Opening (mm) Over Frame (mm) Frame Depth (mm) Internal Tray Depth (mm)
MHC-7122/BE
300 x 300 380 x 380 60 45
MHC-7123/BE
450 x 450 530 x 530 60 45
MHC-7124/BE
600 x 450 680 x 530 60 45
MHC-7125/BE
600 x 600 680 x 680 60 45
MHC-7126/BE
750 x 450 830 x 530 60 45
MHC-7127/BE
750 x 600 830 x 680 60 45
MHC-7128/BE
750 x 750 830 x 830 60 45
MHC-7129/BE
900 x 450 980 x 530 60 45
MHC-7130/BE
900 x 600 980 x 680 60 45
MHC-7131/BE
900 x 750 980 x 830 60 45
MHC-7132/BE
900 x 900 980 x 980 60 45
MHC-7133/BE
1000 x 1000 1080 x 1080 60 45
Available Sizes
MHC-7122/BE
Clear Opening (mm) 300 x 300
Over Frame (mm) 380 x 380
Frame Depth (mm) 60
Internal Tray Depth (mm) 45
MHC-7123/BE
Clear Opening (mm) 450 x 450
Over Frame (mm) 530 x 530
Frame Depth (mm) 60
Internal Tray Depth (mm) 45
MHC-7124/BE
Clear Opening (mm) 600 x 450
Over Frame (mm) 680 x 530
Frame Depth (mm) 60
Internal Tray Depth (mm) 45
MHC-7125/BE
Clear Opening (mm) 600 x 600
Over Frame (mm) 680 x 680
Frame Depth (mm) 60
Internal Tray Depth (mm) 45
MHC-7126/BE
Clear Opening (mm) 750 x 450
Over Frame (mm) 830 x 530
Frame Depth (mm) 60
Internal Tray Depth (mm) 45
MHC-7127/BE
Clear Opening (mm) 750 x 600
Over Frame (mm) 830 x 680
Frame Depth (mm) 60
Internal Tray Depth (mm) 45
MHC-7128/BE
Clear Opening (mm) 750 x 750
Over Frame (mm) 830 x 830
Frame Depth (mm) 60
Internal Tray Depth (mm) 45
MHC-7129/BE
Clear Opening (mm) 900 x 450
Over Frame (mm) 980 x 530
Frame Depth (mm) 60
Internal Tray Depth (mm) 45
MHC-7130/BE
Clear Opening (mm) 900 x 600
Over Frame (mm) 980 x 680
Frame Depth (mm) 60
Internal Tray Depth (mm) 45
MHC-7131/BE
Clear Opening (mm) 900 x 750
Over Frame (mm) 980 x 830
Frame Depth (mm) 60
Internal Tray Depth (mm) 45
MHC-7132/BE
Clear Opening (mm) 900 x 900
Over Frame (mm) 980 x 980
Frame Depth (mm) 60
Internal Tray Depth (mm) 45
MHC-7133/BE
Clear Opening (mm) 1000 x 1000
Over Frame (mm) 1080 x 1080
Frame Depth (mm) 60
Internal Tray Depth (mm) 45
Any questions, contact our expert team on 01296 668850
