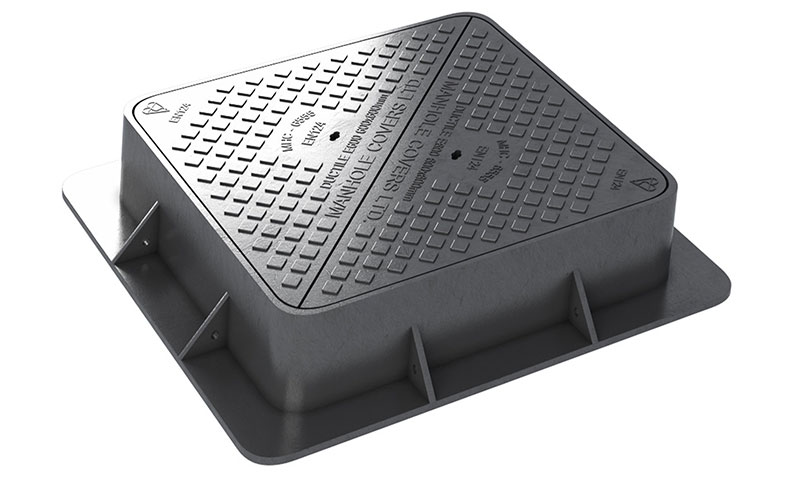

E600 Extreme Wheel Load Covers (150mm Deep)

Heavy Duty Ductile Iron Manufactured to BS:EN124 Class E600
mhc_icon_search_dark@1x
Enlarge
Product Details
Areas imposing exceptionally high wheel loads, e.g. docks, aircraft pavements.
mhc_icon_class_E600@1x
E600
60 Tonnes
mhc_icon_class_E600@1x
E600
60 Tonnes
The E600 manhole cover is for extreme wheel loads and is appropriate for use in docks, ports and motorways.
Specification
  • mhc_icon_check@1x Extreme Wheel Loads: Docks, Ports, Motorways
  • mhc_icon_check@1x Manufactured to BS:EN124 Class E600
  • mhc_icon_check@1x 60 Tonne Safe Test Load
  • mhc_icon_check@1x Highways agency HA104/09 compliant
  • mhc_icon_check@1x Double Triangular three-point suspension non-rock
  • mhc_icon_check@1x Underside lids loosely bolted together
  • mhc_icon_check@1x Closed keyways
  • mhc_icon_check@1x Choice of BSI Kitemark of other third party accreditation
  • mhc_icon_check@1x 150mm Deep Frame
Options
  • mhc_icon_options_badging@1x Badging to customer requirements
  • mhc_icon_options_lockable@1x Lockable to order
  • mhc_icon_options_anti-terrorist@1x Anti-terrorist locking
  • mhc_icon_options_ventilation Covers can be ventilated
  • mhc_icon_options_grid Safety grids
  • mhc_icon_options_seal Sealing plate to prevent ingress of surface water and egress of foul odours
  • mhc_icon_options_lifting keys@1x Lifting keys (MHC Ref. LK5400)
  • mhc_icon_options_size Other sizes available upon request
Available Sizes
Product code Clear Opening (mm) Over Frame (mm) Frame Depth (mm) EN124 Certification
MHC-6555
600 x 600 750 x 750 150 km
MHC-6560
675 x 675 825 x 825 150 km
MHC-6565
750 x 600 900 x 750 150 km
MHC-6575
900 x 600 1050 x 750 150 km
MHC-6588
1200 x 1200 1350 x 1350 150 en124
MHC-6585
1220 x 675 1370 x 725 150 km
MHC-6587
1200 x 900 1350 x 1050 150 km
MHC-6589
1350 x 1350 1500 x 1500 150 en124
MHC-6590
1500 x 1500 1650 x 1650 150 en124
MHC-6595
1800 x 675 1950 x 825 150 km
Available Sizes
MHC-6555
Clear Opening (mm) 600 x 600
Over Frame (mm) 750 x 750
Frame Depth (mm) 150
EN124 Certification km
MHC-6560
Clear Opening (mm) 675 x 675
Over Frame (mm) 825 x 825
Frame Depth (mm) 150
EN124 Certification km
MHC-6565
Clear Opening (mm) 750 x 600
Over Frame (mm) 900 x 750
Frame Depth (mm) 150
EN124 Certification km
MHC-6575
Clear Opening (mm) 900 x 600
Over Frame (mm) 1050 x 750
Frame Depth (mm) 150
EN124 Certification km
MHC-6588
Clear Opening (mm) 1200 x 1200
Over Frame (mm) 1350 x 1350
Frame Depth (mm) 150
EN124 Certification en124
MHC-6585
Clear Opening (mm) 1220 x 675
Over Frame (mm) 1370 x 725
Frame Depth (mm) 150
EN124 Certification km
MHC-6587
Clear Opening (mm) 1200 x 900
Over Frame (mm) 1350 x 1050
Frame Depth (mm) 150
EN124 Certification km
MHC-6589
Clear Opening (mm) 1350 x 1350
Over Frame (mm) 1500 x 1500
Frame Depth (mm) 150
EN124 Certification en124
MHC-6590
Clear Opening (mm) 1500 x 1500
Over Frame (mm) 1650 x 1650
Frame Depth (mm) 150
EN124 Certification en124
MHC-6595
Clear Opening (mm) 1800 x 675
Over Frame (mm) 1950 x 825
Frame Depth (mm) 150
EN124 Certification km
Any questions, contact our expert team on 01296 668850
