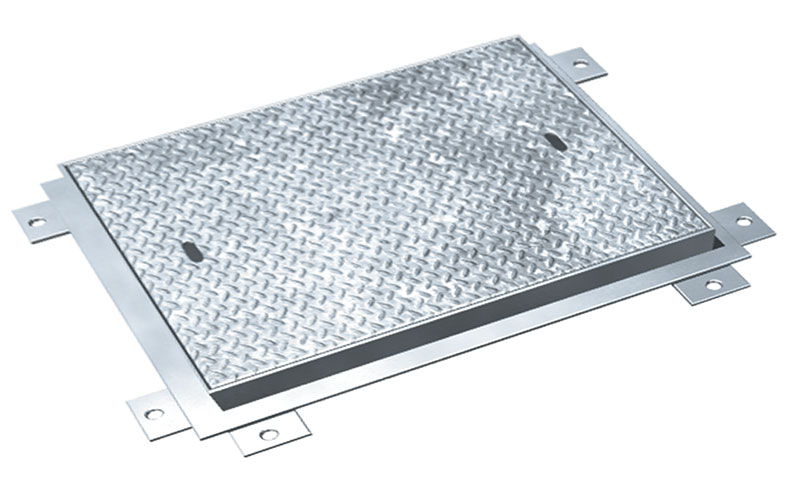

Forklift Loading Solid Top Steel Access Covers

Solid Top Steel Access Cover (Industrial Areas)
mhc_icon_search_dark@1x
Enlarge
Product Details
Special Application - Civil and military air field aprons, where particularly heavy wheel loads are imposed by aircraft and towing vehicles.
mhc_icon_class_E600@1x
FL
Special
mhc_icon_class_E600@1x
FL
Special

Application: Suitable for internal and external situations including industrial floors and forecourt areas, or any area liable to encounter either abnormal loads or forklift traffic.

Construction: Covers fabricated from quality durbar pattern steel plate heavily underbraced to suit load rating. Frame construction from heavy cold rolled steel implementing single or double sealing grooves. Multiple units complete with removable support beams and pockets.

Finish: Hot dipped galvanised to BS EN ISO 1461 as standard.

Manufacture: ISO9001 Quality system. F.A.C.T.A. (Fabricated Access Cover Trade Association) member.

Load Rating: FL: Suitable for use in abnormal load or forklift areas and equivalent to 50 Tonne Gross Laden Vehicle Weight. Units tested to 5 Tonnes through a 150mm dia. test block. Also capable of taking a 11.5 Tonne slow moving wheel load via a 250mm dia. test block.

Ordering: Please state required MHC Order Code and any optional extras i.e. MHC-9225/L&L = 600x600mm/Forklift Loading/Lock & Lift.

Options
  • mhc_icon_options_seal Double seal = suffix /DS
  • mhc_icon_options_lockable@1x Locking screws = suffix /L
  • mhc_icon_check@1x Lock and Lift Devices = suffix /L&L
  • mhc_icon_options_lifting keys@1x Allen key head security screws = suffix /AK
  • mhc_icon_options_anti-terrorist@1x Ministry of Defence approved security screws = suffix /MOD
  • mhc_icon_check@1x Peephole inspection point = suffix /PH
Available Sizes
Product code Clear Opening (mm) Over Frame (mm) Frame Depth (mm)
MHC-9222
300 x 300 450 x 450 95
MHC-9223
450 x 450 600 x 600 95
MHC-9224
600 x 450 750 x 600 95
MHC-9225
600 x 600 750 x 750 95
MHC-9226
750 x 450 900 x 600 95
MHC-9227
750 x 600 900 x 750 95
MHC-9228
750 x 750 900 x 900 95
MHC-9229
900 x 450 1050 x 600 95
MHC-9230
900 x 600 1050 x 750 95
MHC-9231
900 x 750 1050 x 900 95
MHC-9232
900 x 900 1050 x 1050 95
MHC-9233
1000 x 1000 1150 x 1150 95
Available Sizes
MHC-9222
Clear Opening (mm) 300 x 300
Over Frame (mm) 450 x 450
Frame Depth (mm) 95
MHC-9223
Clear Opening (mm) 450 x 450
Over Frame (mm) 600 x 600
Frame Depth (mm) 95
MHC-9224
Clear Opening (mm) 600 x 450
Over Frame (mm) 750 x 600
Frame Depth (mm) 95
MHC-9225
Clear Opening (mm) 600 x 600
Over Frame (mm) 750 x 750
Frame Depth (mm) 95
MHC-9226
Clear Opening (mm) 750 x 450
Over Frame (mm) 900 x 600
Frame Depth (mm) 95
MHC-9227
Clear Opening (mm) 750 x 600
Over Frame (mm) 900 x 750
Frame Depth (mm) 95
MHC-9228
Clear Opening (mm) 750 x 750
Over Frame (mm) 900 x 900
Frame Depth (mm) 95
MHC-9229
Clear Opening (mm) 900 x 450
Over Frame (mm) 1050 x 600
Frame Depth (mm) 95
MHC-9230
Clear Opening (mm) 900 x 600
Over Frame (mm) 1050 x 750
Frame Depth (mm) 95
MHC-9231
Clear Opening (mm) 900 x 750
Over Frame (mm) 1050 x 900
Frame Depth (mm) 95
MHC-9232
Clear Opening (mm) 900 x 900
Over Frame (mm) 1050 x 1050
Frame Depth (mm) 95
MHC-9233
Clear Opening (mm) 1000 x 1000
Over Frame (mm) 1150 x 1150
Frame Depth (mm) 95
Any questions, contact our expert team on 01296 668850
