Kerb Weir

Heavy Duty Ductile Iron Manufactured to BS:EN124 Class D400
mhc_icon_search_dark@1x
Enlarge
Product Details
For covers and gratings used in carriageways of roads (including pedestrian streets), hard shoulders and parking areas, for all types of road vehicles.
mhc_icon_class_D400@1x
D400
40 Tonnes
mhc_icon_class_D400@1x
D400
40 Tonnes

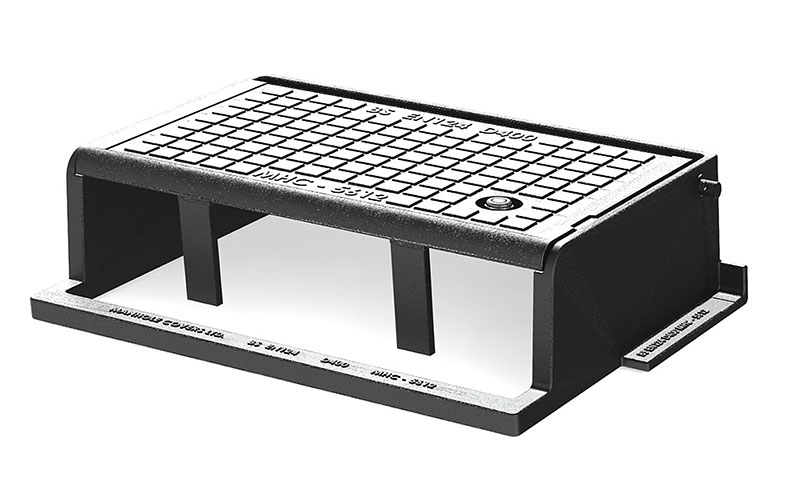

This kerb weir is made from heavy duty ductile iron and is Highways Agency HA104/09 compliant.
Specification
  • mhc_icon_check@1x Heavy Duty Ductile Iron Kerb Gully Unit
  • mhc_icon_check@1x Manufactured to BS EN124 Class D400
  • mhc_icon_check@1x 40 Tonne Safe Test Load
  • mhc_icon_check@1x Highways agency HA104/09 compliant
  • mhc_icon_check@1x Kitemarked for third party assurance of quality
  • mhc_icon_check@1x Standard unit is 150mm deep
  • mhc_icon_check@1x Depth increased to 190mm when used with sub frame DSUB.
  • mhc_icon_check@1x Captive hinged design for easy access and increased security
Available Sizes
Product code Kerb Profile Clear Opening (mm) Over Base Unit Depth Loading BS497 Ref
MHC-6610
half batter 495 x 355 590 x 420 150 d400 gk 115
MHC-6611
splayed 495 x 355 590 x 420 150 d400 gk 115
MHC-6610/40
depth increaser 40mm 590 x 420 40 d400 na
Available Sizes
MHC-6610
Kerb Profile half batter
Clear Opening (mm) 495 x 355
Over Base 590 x 420
Unit Depth 150
Loading d400
BS497 Ref gk 115
MHC-6611
Kerb Profile splayed
Clear Opening (mm) 495 x 355
Over Base 590 x 420
Unit Depth 150
Loading d400
BS497 Ref gk 115
MHC-6610/40
Kerb Profile depth increaser
Clear Opening (mm) 40mm
Over Base 590 x 420
Unit Depth 40
Loading d400
BS497 Ref na
Any questions, contact our expert team on 01296 668850
