MEADRAIN PG Low Profile Channel Drainage (Multi-Storey and Underground Car Parks)

Low profile channel drain specifically designed for multi-storey and underground car parks: Load Class C250
mhc_icon_search_dark@1x
Enlarge
Product Details
For gully gratings installed in the area of kerbside channels of roads. This area extends from a maximum of 0.5m into a carriageway to a maximum of 0.2m into the footway. Recommended for minor roads/areas of slow moving traffic.
mhc_icon_class_C250@1x
C250
25 Tonnes
mhc_icon_class_C250@1x
C250
25 Tonnes

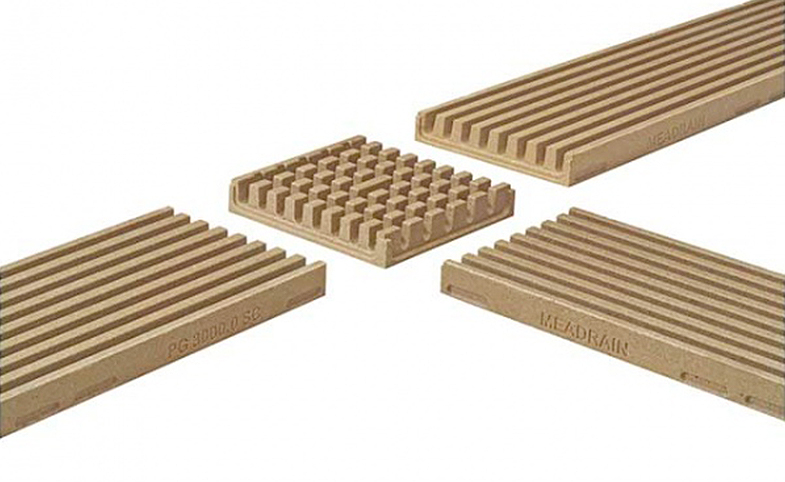

MEADRAIN PG – THE DRAINAGE SOLUTION FOR MULTISTOREY AND UNDERGROUND CAR PARKS

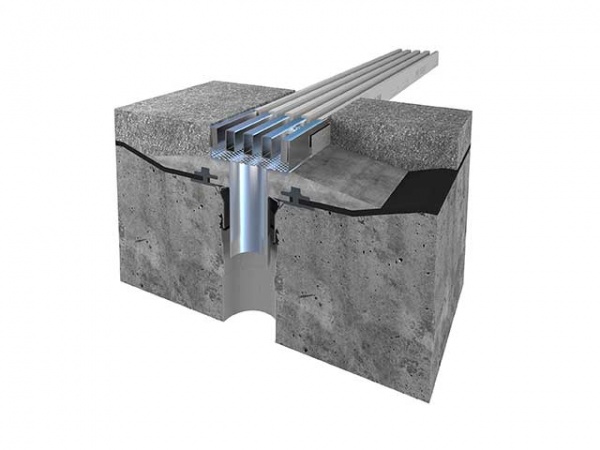

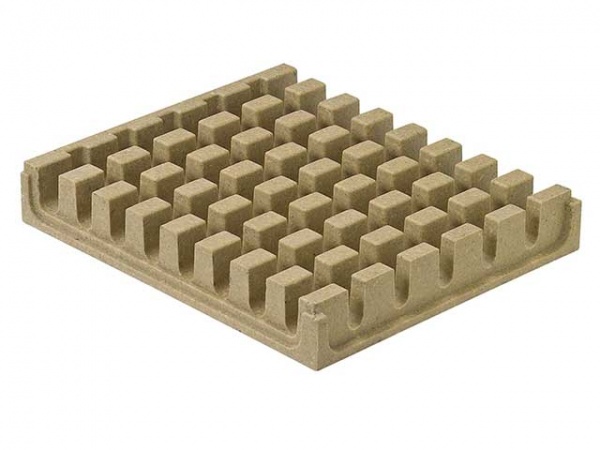

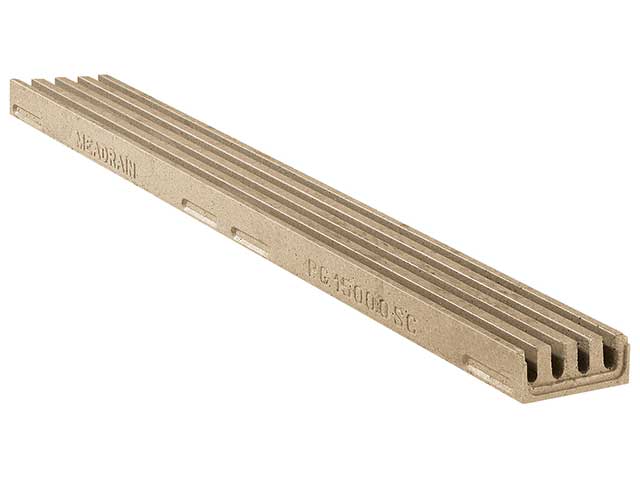

The MEADRAIN PG drainage channel provides a simple, discreet and efficient solution for multistorey car park drainage. The low total height of the PG drainage channel enables facilitated installation. The MEADRAIN PG drainage channel is also very easy to clean because there are no cover gratings to be removed. MEADRAIN PG drainage channels are made from MEA polymer concrete. This material is extremely resistant to chemical substances, oils and salt.

Thanks to their monolithic design with no cover gratings, the drainage channels are secure against theft and vandalism. This design also has an undisputed acoustic advantage: since the MEADRAIN PG drainage channel has no moving parts, very little noise is produced when they are passed over by cars.

Specification
  • mhc_icon_check@1x Barrier-free
  • mhc_icon_check@1x Low noise level when passing over
  • mhc_icon_check@1x Easy to clean
  • mhc_icon_check@1x Easy to install
  • mhc_icon_check@1x Extremely resilient
  • mhc_icon_check@1x Corrosion-free
  • mhc_icon_check@1x Sealable
  • mhc_icon_check@1x Fully fledged system solution
Options
  • mhc_icon_options_size Available in 100mm, 150mm, 300mm widths for different amounts of water
Any questions, contact our expert team on 01296 668850
