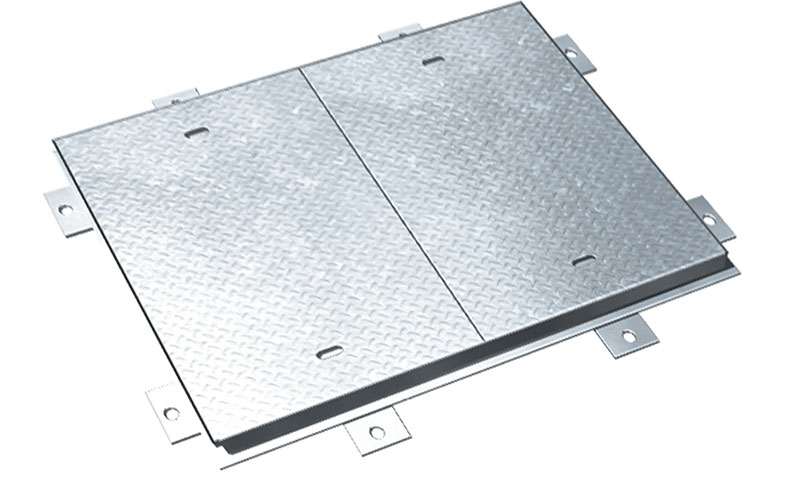

2-Part Chequer Plate Steel Solid Top Access Covers

Solid Top Steel Access Cover (Industrial Areas)
mhc_icon_search_dark@1x
Enlarge
Product Details
Multiple Classes

Application: Suitable for internal and external situatons including basements, industrial floors, forecourts, car parks and sewerage treatment works where a durable solid top access cover and frame is required.

Construction: 2-Part unit complete with removable support beams and bolt type support pockets. Covers fabricated from quality durbar pattern steel plate suitably underbraced to suit load rating. Frame construction from heavy cold rolled steel implementing single or double sealing grooves. Supplied single seal as standard.

Finish: Hot dipped galvanised to BS EN ISO 1461 as standard.

Manufacture: ISO9001 Quality system. F.A.C.T.A. (Fabricated Access Cover Trade Association) member.

Load Ratings:

FACTA AA 5 Tonne = suffix /AA

FACTA AAA 10 Tonne = suffix /AAA

FACTA B 44 Tonne = suffix /B

Tonnes = G.L.V.W. (Gross Laden Vehicle Weight).

‚ÄčOrdering: Please state required MHC Order Code, load suffixes, and any optional extras i.e. MHC-9171/B/DS/L = 1800x600mm/44T/Double Seal/Locking.

Options
  • mhc_icon_options_seal Double seal = suffix /DS
  • mhc_icon_options_lockable@1x Locking screws = suffix /L
  • mhc_icon_check@1x Lock and Lift Devices = suffix /L&L
  • mhc_icon_options_lifting keys@1x Allen key head security screws = suffix /AK
  • mhc_icon_options_anti-terrorist@1x Ministry of Defence approved security screws = suffix /MOD
Available Sizes
Product code Clear Opening (mm) Over Frame (mm) Frame Depth (mm)
MHC-9165
1200 x 600 1350 x 750 45
MHC-9166
1200 x 750 1350 x 900 45
MHC-9167
1200 x 900 1350 x 1050 45
MHC-9168
1500 x 600 1650 x 750 45
MHC-9169
1500 x 750 1650 x 900 45
MHC-9170
1500 x 900 1650 x 1050 45
MHC-9171
1800 x 600 1950 x 750 45
MHC-9172
1800 x 750 1950 x 900 45
MHC-9173
1800 x 900 1950 x 1050 45
Available Sizes
MHC-9165
Clear Opening (mm) 1200 x 600
Over Frame (mm) 1350 x 750
Frame Depth (mm) 45
MHC-9166
Clear Opening (mm) 1200 x 750
Over Frame (mm) 1350 x 900
Frame Depth (mm) 45
MHC-9167
Clear Opening (mm) 1200 x 900
Over Frame (mm) 1350 x 1050
Frame Depth (mm) 45
MHC-9168
Clear Opening (mm) 1500 x 600
Over Frame (mm) 1650 x 750
Frame Depth (mm) 45
MHC-9169
Clear Opening (mm) 1500 x 750
Over Frame (mm) 1650 x 900
Frame Depth (mm) 45
MHC-9170
Clear Opening (mm) 1500 x 900
Over Frame (mm) 1650 x 1050
Frame Depth (mm) 45
MHC-9171
Clear Opening (mm) 1800 x 600
Over Frame (mm) 1950 x 750
Frame Depth (mm) 45
MHC-9172
Clear Opening (mm) 1800 x 750
Over Frame (mm) 1950 x 900
Frame Depth (mm) 45
MHC-9173
Clear Opening (mm) 1800 x 900
Over Frame (mm) 1950 x 1050
Frame Depth (mm) 45
