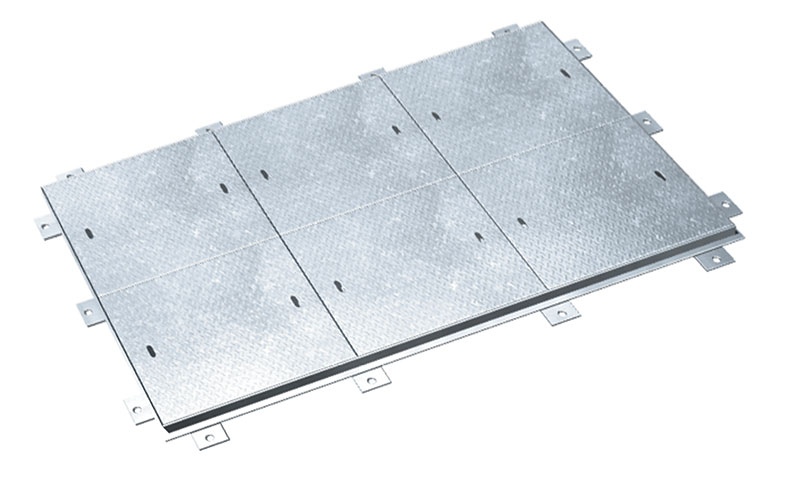

Multiple-Leaf Chequer Plate Steel Solid Top Access Covers

Solid Top Steel Access Cover (Industrial Areas)
mhc_icon_search_dark@1x
Enlarge
Product Details
Multiple Classes

Application: Suitable for internal and external situations including basements, industrial floors, forecourts, car parks and sewerage treatment works where a durable solid top access cover and frame is required.

Construction: Multiple unit complete with removable beams seated in bolt on beam support pockets, providing support to unsupported edges. Units manufactured to required chamber sizes. Covers fabricated from quality durbar pattern steel plate suitably underbraced to suit load rating. Frame construction from heavy cold rolled steel implementing single or double sealing grooves. Supplied single seal as standard.

Finish: Hot dipped galvanised to BS EN ISO 1461 as standard.

Manufacture: ISO9001 Quality system. F.A.C.T.A. (Fabricated Access Cover Trade Association) member.

Load Ratings:

FACTA AA 5 Tonne = suffix /AA

FACTA AAA 10 Tonne = suffix /AAA

FACTA B 44 Tonne = suffix /B

Tonnes = G.L.V.W. (Gross Laden Vehicle Weight).

‚ÄčOrdering: Please state required MHC Order Code, Stating required clear opening, Load Suffixes, and any optional extras i.e. MHC-9150M/3000x2600mm/B/DS/L = 3000x2600mm/44T/Double Seal/Locking.

Options
  • mhc_icon_options_seal Double seal = suffix /DS
  • mhc_icon_options_lockable@1x Locking screws = suffix /L
  • mhc_icon_check@1x Lock and Lift Devices = suffix /L&L
  • mhc_icon_options_lifting keys@1x Allen key head security screws = suffix /AK
  • mhc_icon_options_badging@1x Ministry of Defence approved security screws = suffix /MOD
Available Sizes
Product code Clear Opening (mm) Over Frame (mm) Frame Depth (mm)
MHC-9150M
xxx x xxx c 0 150mm 45
Available Sizes
MHC-9150M
Clear Opening (mm) xxx x xxx
Over Frame (mm) c 0 150mm
Frame Depth (mm) 45
Any questions, contact our expert team on 01296 668850
