2-Part Heavy Duty Recessed Airtight Seal

Locked
mhc_icon_search_dark@1x
Enlarge
Product Details
Pedestrian areas with vehicular traffic up to 44 Tonnes (GLVW) or 5 Tonnes (SMWL) i.e. industrial precincts, forecourts, commercial delivery areas, lorry parks.
mhc_icon_class_D400@1x
B
44 Tonnes*
mhc_icon_class_D400@1x
B
44 Tonnes*

Application: Suitable for internal and external situations such as industrial forecourts, car parks, lorry parks and water treatment works. The 7250 Series accepts a concrete or tarmacadam infill.

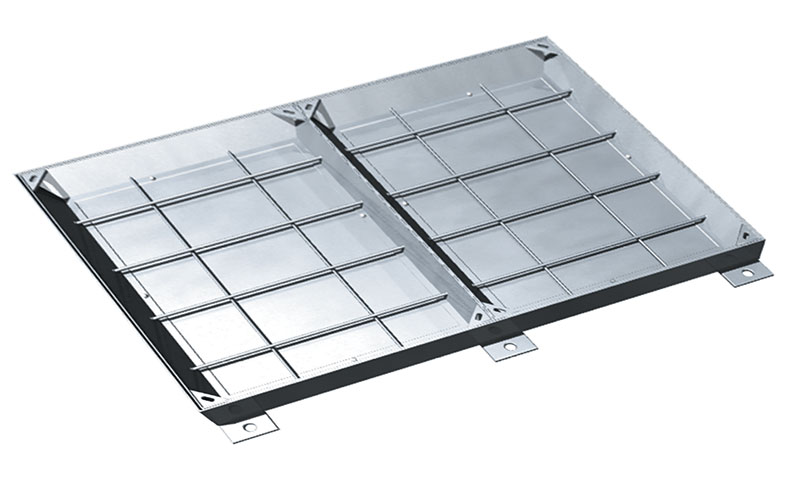

Construction: 2-Part unit complete with removable support beams and bolt on type support pockets. Comprises galvanised mild steel recessed cover and frame to enable concrete or tarmacadam infill. Solid steel base plate design prevents prior need for shuttering. Units manufactured from matching lid and frame section. Keying in bars fitted inside recess. Locked units secured with 4 galvanised steel screws as standard. When unlocked, screw holes act as lifting eyes. Double seal units are airtight. Supplied single seal as standard.

Finish: Hot dipped galvanised to BS EN ISO 1461 as standard.

Manufacture: ISO 9001 Quality system. F.A.C.T.A. (Fabricated Access Cover Trade Association) member.

Load Rating: F.A.C.T.A. Class SB - 44 Tonne G.L.V.W. (Gross Laden Vehicle Weight). Full loading achieved infilled with Grade C25 concrete.

Ordering: Please state required MHC Order Code and any optional extras i.e. MHC-7267/DS/AK = 1200x900mm/Double Seal /Allen key head security screws.

Options
  • mhc_icon_options_seal Double seal = MHC order code suffix |DS
  • mhc_icon_options_lockable@1x Locking screws = MHC order code suffix |L
  • mhc_icon_options_lifting keys@1x Allen key head security screws = suffix |AK
  • mhc_icon_options_anti-terrorist@1x Ministry of Defence approved security screws = MHC suffix |MOD
  • mhc_icon_check@1x Brass Edging = suffix |BE
  • mhc_icon_check@1x Stainless Steel Edging = MHC suffix |SSE
Available Sizes
Product code Clear Opening (mm) Over Frame (mm) Frame Depth (mm) Internal Tray Depth (mm)
MHC-7265
1200 x 600 1292 x 692 85 69
MHC-7266
1200 x 750 1450 x 842 85 69
MHC-7267
1200 x 900 1450 x 992 85 69
MHC-7268
1500 x 600 1592 x 692 85 69
MHC-7269
1500 x 750 1750 x 842 85 69
MHC-7270
1500 x 900 1750 x 992 85 69
MHC-7271
1800 x 600 1892 x 692 85 69
MHC-7272
1800 x 750 2050 x 842 85 69
MHC-7273
1800 x 900 2050 x 992 85 69
Available Sizes
MHC-7265
Clear Opening (mm) 1200 x 600
Over Frame (mm) 1292 x 692
Frame Depth (mm) 85
Internal Tray Depth (mm) 69
MHC-7266
Clear Opening (mm) 1200 x 750
Over Frame (mm) 1450 x 842
Frame Depth (mm) 85
Internal Tray Depth (mm) 69
MHC-7267
Clear Opening (mm) 1200 x 900
Over Frame (mm) 1450 x 992
Frame Depth (mm) 85
Internal Tray Depth (mm) 69
MHC-7268
Clear Opening (mm) 1500 x 600
Over Frame (mm) 1592 x 692
Frame Depth (mm) 85
Internal Tray Depth (mm) 69
MHC-7269
Clear Opening (mm) 1500 x 750
Over Frame (mm) 1750 x 842
Frame Depth (mm) 85
Internal Tray Depth (mm) 69
MHC-7270
Clear Opening (mm) 1500 x 900
Over Frame (mm) 1750 x 992
Frame Depth (mm) 85
Internal Tray Depth (mm) 69
MHC-7271
Clear Opening (mm) 1800 x 600
Over Frame (mm) 1892 x 692
Frame Depth (mm) 85
Internal Tray Depth (mm) 69
MHC-7272
Clear Opening (mm) 1800 x 750
Over Frame (mm) 2050 x 842
Frame Depth (mm) 85
Internal Tray Depth (mm) 69
MHC-7273
Clear Opening (mm) 1800 x 900
Over Frame (mm) 2050 x 992
Frame Depth (mm) 85
Internal Tray Depth (mm) 69
