Heavy Duty Recessed Airtight Seal

Locked
mhc_icon_search_dark@1x
Enlarge
Product Details
Pedestrian areas with vehicular traffic up to 44 Tonnes (GLVW) or 5 Tonnes (SMWL) i.e. industrial precincts, forecourts, commercial delivery areas, lorry parks.
mhc_icon_class_D400@1x
B
44 Tonnes*
mhc_icon_class_D400@1x
B
44 Tonnes*

Application: Suitable for internal and external situations such as industrial forecourts, car parks, lorry parks and water treatment works. The 7200 Series accepts a concrete or tarmacadam infill.

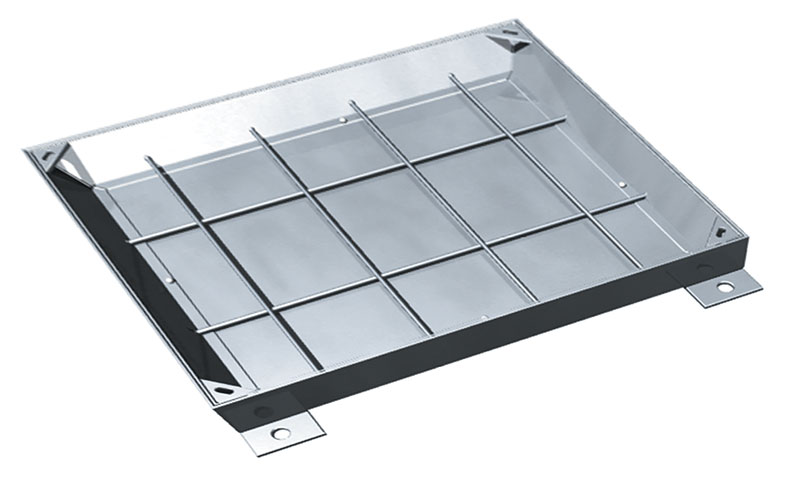

Construction: Comprises galvanised mild steel reccessed cover and frame to enable concrete or tarmacadam infill. Solid steel base plate design prevents prior need for shuttering. Units manufactured from matching lid and frame section. Keying in bars fitted inside reccess. Locked units secured with 4 galvanised steel screws as standard. When unlocked, screw holes act as lifting eyes. Multiple units (see 7250 and 7250M Series) come complete with removable support beams. Double seal units are airtight. Supplied single seal as standard.

Finish: Hot dipped galvanised to BS EN ISO 1461 as standard.

Manufacture: ISO9001 Quality system. F.A.C.T.A. (Fabricated Acces Cover Trade Association) member.

Load Rating: F.A.C.T.A. Class B - 38 Tonne G.L.V.W. (Gross Laden Vehicle Weight). Full loading achieved infilled with Grade C25 concrete.

Ordering: Please state required MHC Order Code and any optional extras i.e. MHC-7230/DS/AK = 900x600mm/Double Seal /Allen key head security screws.

Options
  • mhc_icon_options_seal Double seal = MHC order code suffix |DS
  • mhc_icon_options_lockable@1x Locking screws = MHC order code suffix |L
  • mhc_icon_options_lifting keys@1x Allen key head security screws = suffix |AK
  • mhc_icon_options_anti-terrorist@1x Ministry of Defence approved security screws = MHC suffix |MOD
  • mhc_icon_check@1x Brass Edging = suffix |BE
  • mhc_icon_check@1x Stainless Steel Edging = MHC suffix |SSE
Available Sizes
Product code Clear Opening (mm) Over Frame (mm) Frame Depth (mm) Internal Tray Depth (mm)
MHC-7222
300 x 300 392 x 392 85 69
MHC-7223
450 x 450 542 x 542 85 69
MHC-7224
600 x 450 692 x 542 85 69
MHC-7225
600 x 600 692 x 692 85 69
MHC-7226
750 x 450 842 x 542 85 69
MHC-7227
750 x 600 842 x 692 85 69
MHC-7228
750 x 750 842 x 842 85 69
MHC-7229
900 x 450 992 x 542 85 69
MHC-7230
900 x 600 992 x 692 85 69
MHC-7231
900 x 750 992 x 842 85 69
MHC-7232
900 x 900 992 x 992 85 69
MHC-7233
1000 x 1000 1092 x 1092 85 69
Available Sizes
MHC-7222
Clear Opening (mm) 300 x 300
Over Frame (mm) 392 x 392
Frame Depth (mm) 85
Internal Tray Depth (mm) 69
MHC-7223
Clear Opening (mm) 450 x 450
Over Frame (mm) 542 x 542
Frame Depth (mm) 85
Internal Tray Depth (mm) 69
MHC-7224
Clear Opening (mm) 600 x 450
Over Frame (mm) 692 x 542
Frame Depth (mm) 85
Internal Tray Depth (mm) 69
MHC-7225
Clear Opening (mm) 600 x 600
Over Frame (mm) 692 x 692
Frame Depth (mm) 85
Internal Tray Depth (mm) 69
MHC-7226
Clear Opening (mm) 750 x 450
Over Frame (mm) 842 x 542
Frame Depth (mm) 85
Internal Tray Depth (mm) 69
MHC-7227
Clear Opening (mm) 750 x 600
Over Frame (mm) 842 x 692
Frame Depth (mm) 85
Internal Tray Depth (mm) 69
MHC-7228
Clear Opening (mm) 750 x 750
Over Frame (mm) 842 x 842
Frame Depth (mm) 85
Internal Tray Depth (mm) 69
MHC-7229
Clear Opening (mm) 900 x 450
Over Frame (mm) 992 x 542
Frame Depth (mm) 85
Internal Tray Depth (mm) 69
MHC-7230
Clear Opening (mm) 900 x 600
Over Frame (mm) 992 x 692
Frame Depth (mm) 85
Internal Tray Depth (mm) 69
MHC-7231
Clear Opening (mm) 900 x 750
Over Frame (mm) 992 x 842
Frame Depth (mm) 85
Internal Tray Depth (mm) 69
MHC-7232
Clear Opening (mm) 900 x 900
Over Frame (mm) 992 x 992
Frame Depth (mm) 85
Internal Tray Depth (mm) 69
MHC-7233
Clear Opening (mm) 1000 x 1000
Over Frame (mm) 1092 x 1092
Frame Depth (mm) 85
Internal Tray Depth (mm) 69
Any questions, contact our expert team on 01296 668850
