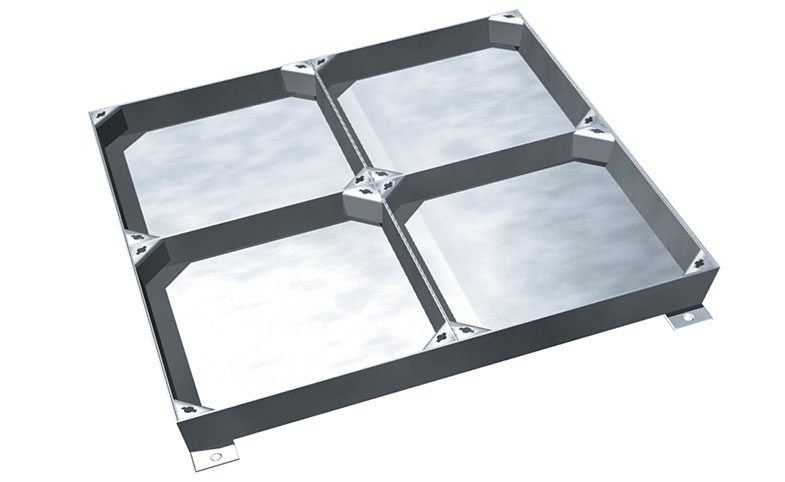

Application: Designed for use in industrial and public situations such as town centres, car parks, forecourt and other public amenities. The 8150M Series is a high quality recessed cover and frame that will successfully enhance any block paved area.
Construction: Multiple lids set within frame sections and support beams. Substantial specially rolled mild steel frame. Recessed cover to accept block paving and slab infill. Solid base palte design. Angled inner frame to aid lid removal. Robust lifting eyes pierced to accept standard profile lifting keys. Fully flanged frame. Removable support beams to provide sealing and support to cover joints are supplied with bolt on type beam support pockets. Units are manufactured to suit required chamber sizes. Single seal assembly as standard.
Finish: Hot dipped galvanised to BS EN ISO 1461as standard.
Manufacture: ISO9001 Quality system. F.A.C.T.A.An organisation that provides specifications and standards for fabricated access covers, allowing for flexibility in design and load-bearing capabilities. We are an associated member of the organisation. (Fabricated Access Cover Trade Association) member.
Load Ratings:
FACTA AA 5 Tonne = MHC order code suffix |AA
FACTA AAA 10 Tonne = MHC order code suffix |AAA
FACTA B 44 Tonne = MHC order code suffix |B
CLASS FL 50 Tonne = MHC order code suffix |FL
Tonnes = G.L.V.W.Gross Laden Vehicle Weight (GLVW) is the total weight of a vehicle when fully loaded. It is used as a simple way to indicate the type and size of vehicle traffic a cover is intended to withstand. (Gross Laden Vehicle Weight)
Ordering: Please state required MHC Code 7350M followed by required clear opening size and any optional extras i.e. MHC-8150M/2000x2000mm/DS/L/Badged CATV = 2000x2000mm/Double Seal/Locking/ Badged ‘CATV.’
