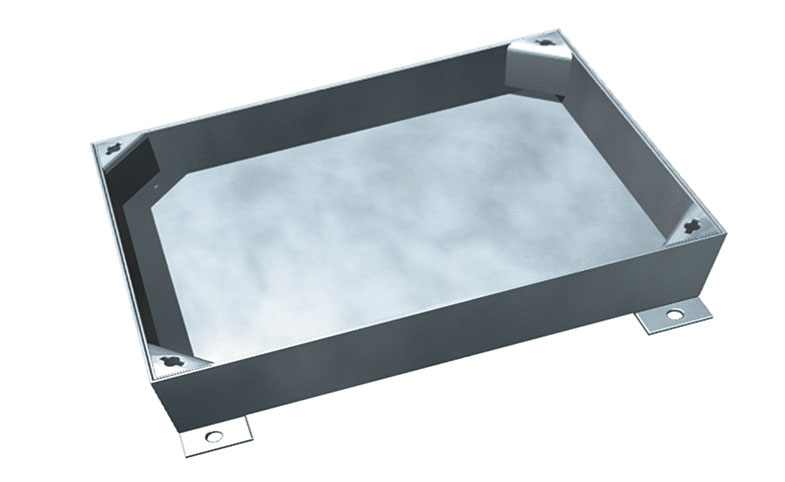

8100-Series Block Pavior Cover

(8100 Series)
mhc_icon_search_dark@1x
Enlarge
Product Details
Multiple Classes

Application: Designed for use in industrial and public situations such as town centres, car parks, forecourts and other public amenities. The 8100 Series is a high quality recessed cover and frame that will successfully enhance any block paved area.

Construction: Substantial specially rolled mild steel frame. Recessed cover to accept block paving and slab infill. Solid base plate design. Angled inner frame to aid lid removal. Robust lifting eyes pierced to accept standard profile lifting keys. Fully flanged frame. Multiple units (see 8150 and 8150M Series) come complete with removable support beams. Single seal assembly as standard..

Finish: Hot dipped galvanised to BS EN ISO 1461 as standard.

Manufacture: ISO9001 Quality system. F.A.C.T.A. (Fabricated Access Cover Trade Association) member.

Load Ratings:

FACTA AA 5 Tonne = MHC order code suffix |AA

FACTA AAA 10 Tonne = MHC order code suffix |AAA

FACTA B 44 Tonne = MHC order code suffix |B

CLASS FL 50 Tonne = MHC order code suffix |FL

Tonnes = G.L.V.W. (Gross Laden Vehicle Weight).

Ordering: Please state required MHC Order Code and any optional extras i.e. MHC-8130/B/L/Badged 'ELECTRIC' = 900x600mm/38T/Locking/Badged 'ELECTRIC.'

Options
  • mhc_icon_options_seal Double seal = MHC order code suffix |DS
  • mhc_icon_options_lockable@1x Locking screws = MHC order code suffix |L
  • mhc_icon_options_lifting keys@1x Allen key head security screws = suffix |AK
  • mhc_icon_options_anti-terrorist@1x Ministry of Defence approved security screws = MHC suffix |MOD
  • mhc_icon_check@1x Brass Edging = suffix |BE
  • mhc_icon_check@1x Stainless Steel Edging = MHC suffix |SSE
  • mhc_icon_check@1x Engraved Lifting Eyes = MHC suffix i.e. /Badged 'CATV' (please state required lettering).
Available Sizes
Product code Clear Opening (mm) Over Frame (mm) Frame Depth (mm) Internal Tray Depth (mm)
MHC-8122
300 x 300 380 x 380 135 100
MHC-8123
450 x 450 530 x 530 135 100
MHC-8124
600 x 450 680 x 530 135 100
MHC-8125
600 x 600 680 x 680 135 100
MHC-8126
750 x 450 850 x 550 135 100
MHC-8127
750 x 600 850 x 700 135 100
MHC-8128
750 x 750 830 x 830 135 100
MHC-8129
900 x 450 980 x 530 135 100
MHC-8130
900 x 600 980 x 680 135 100
MHC-8131
900 x 750 980 x 830 135 100
MHC-8132
900 x 900 980 x 980 135 100
MHC-8133
1000 x 1000 1080 x 1080 135 100
Available Sizes
MHC-8122
Clear Opening (mm) 300 x 300
Over Frame (mm) 380 x 380
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-8123
Clear Opening (mm) 450 x 450
Over Frame (mm) 530 x 530
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-8124
Clear Opening (mm) 600 x 450
Over Frame (mm) 680 x 530
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-8125
Clear Opening (mm) 600 x 600
Over Frame (mm) 680 x 680
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-8126
Clear Opening (mm) 750 x 450
Over Frame (mm) 850 x 550
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-8127
Clear Opening (mm) 750 x 600
Over Frame (mm) 850 x 700
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-8128
Clear Opening (mm) 750 x 750
Over Frame (mm) 830 x 830
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-8129
Clear Opening (mm) 900 x 450
Over Frame (mm) 980 x 530
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-8130
Clear Opening (mm) 900 x 600
Over Frame (mm) 980 x 680
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-8131
Clear Opening (mm) 900 x 750
Over Frame (mm) 980 x 830
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-8132
Clear Opening (mm) 900 x 900
Over Frame (mm) 980 x 980
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-8133
Clear Opening (mm) 1000 x 1000
Over Frame (mm) 1080 x 1080
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
Any questions, contact our expert team on 01296 668850
