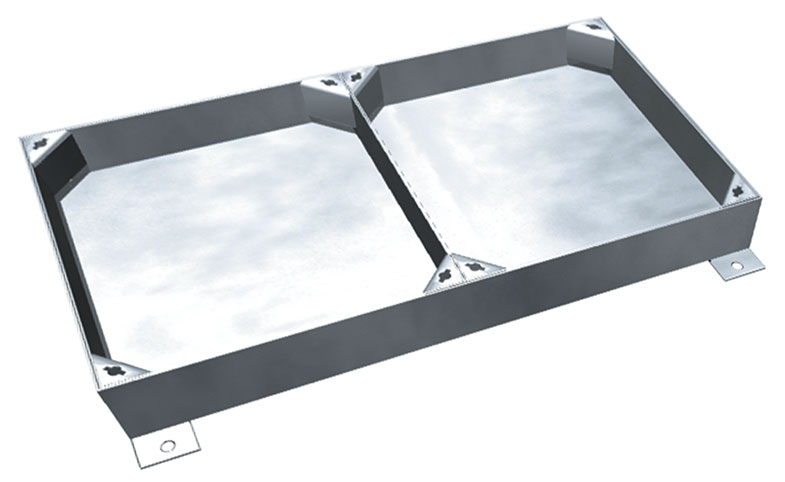

8150-Series 2-Part Block Pavior Cover

(8150 Series)
mhc_icon_search_dark@1x
Enlarge
Product Details
Multiple Classes

Application: Designed for use in industrial and public situations such as town centres, car parks, forecourts and other public amenities. The 8150 Series is a high quality recessed cover and frame that will successfully enhance any block paved area.

Construction: 2-Part recessed lid fitted within a single piece frame. Substantial specially rolled mild steel frame. Recessed cover to accept block paving and slab infill. Solid base plate design. Angled inner frame to aid lid removal. Robust lifting eyes pierced to accept standard profile lifting keys. Fully flanged frame. Single seal assembly as standard..

Finish: Hot dipped galvanised to BS EN ISO 1461 as standard.

Manufacture: ISO9001 Quality system. F.A.C.T.A. (Fabricated Access Cover Trade Association) member.

Load Ratings:

FACTA AA 5 Tonne = MHC order code suffix |AA

FACTA AAA 10 Tonne = MHC order code suffix |AAA

FACTA B 44 Tonne = MHC order code suffix |B

CLASS FL 50 Tonne = MHC order code suffix |FL

Tonnes = G.L.V.W. (Gross Laden Vehicle Weight)

Ordering: Please state required MHC Order Code quoting any optional extras i.e. MHC-8167/AAA/Badged 'CATV' = 1200x900mm/10T/ Badged 'CATV.'

Options
  • mhc_icon_options_seal Double seal = MHC order code suffix |DS
  • mhc_icon_options_lockable@1x Locking screws = MHC order code suffix |L
  • mhc_icon_options_lifting keys@1x Allen key head security screws = suffix |AK
  • mhc_icon_options_anti-terrorist@1x Ministry of Defence approved security screws = MHC suffix |MOD
  • mhc_icon_check@1x Brass Edging = suffix |BE
  • mhc_icon_check@1x Engraved Lifting Eyes = MHC suffix i.e. /Badged 'CATV' (please state required lettering)
Available Sizes
Product code Clear Opening (mm) Over Frame (mm) Frame Depth (mm) Internal Tray Depth (mm)
MHC-8165
1200 x 600 1280 x 680 135 100
MHC-8166
1200 x 750 1280 x 830 135 100
MHC-8167
1200 x 900 1280 x 980 135 100
MHC-8168
1500 x 600 1580 x 680 135 100
MHC-8169
1500 x 750 1580 x 830 135 100
MHC-8170
1500 x 900 1580 x 980 135 100
MHC-8171
1800 x 600 1880 x 680 135 100
MHC-8172
1800 x 750 1880 x 830 135 100
MHC-8173
1800 x 900 1880 x 980 135 100
Available Sizes
MHC-8165
Clear Opening (mm) 1200 x 600
Over Frame (mm) 1280 x 680
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-8166
Clear Opening (mm) 1200 x 750
Over Frame (mm) 1280 x 830
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-8167
Clear Opening (mm) 1200 x 900
Over Frame (mm) 1280 x 980
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-8168
Clear Opening (mm) 1500 x 600
Over Frame (mm) 1580 x 680
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-8169
Clear Opening (mm) 1500 x 750
Over Frame (mm) 1580 x 830
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-8170
Clear Opening (mm) 1500 x 900
Over Frame (mm) 1580 x 980
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-8171
Clear Opening (mm) 1800 x 600
Over Frame (mm) 1880 x 680
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-8172
Clear Opening (mm) 1800 x 750
Over Frame (mm) 1880 x 830
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-8173
Clear Opening (mm) 1800 x 900
Over Frame (mm) 1880 x 980
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
