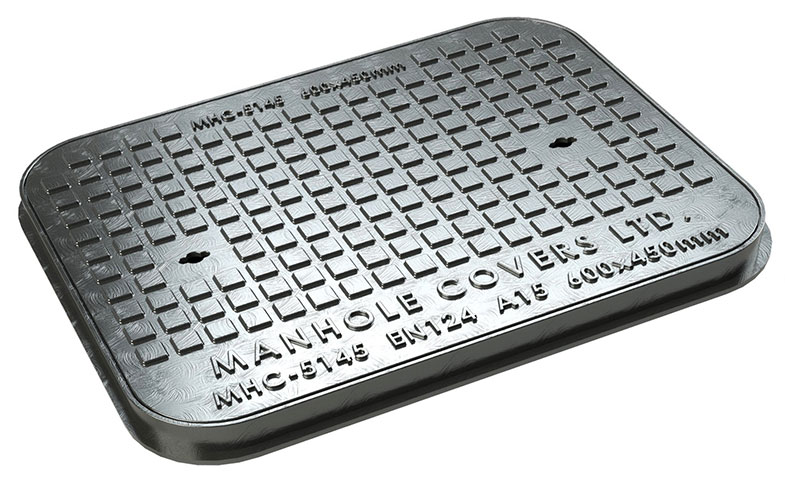

A15 Solid Top Covers - Pedestrians and Cyclists

Light Duty Cast Iron Manufactured to BS:EN124 Class A15
mhc_icon_search_dark@1x
Enlarge
Product Details
Areas which can only be used by pedestrians and pedal cyclists.
mhc_icon_class_A15@1x
A15
5 Tonnes
mhc_icon_class_A15@1x
A15
5 Tonnes
This A15 Solid Top Manhole Cover is appropriate for pedestrians and cyclists. With a single seal and 1.5 tonne safe load test, its also features M.O.D. anti-terrorist locking bolts.
Specification
  • mhc_icon_check@1x Suitable for pedestrian traffic and cyclists
  • mhc_icon_check@1x Manufactured to BS:EN124 Class A15
  • mhc_icon_check@1x 1.5 Tonne Safe Test Load
  • mhc_icon_check@1x Single seal solid top
  • mhc_icon_check@1x Closed keyways
  • mhc_icon_check@1x BSI Kitemark
Options
  • mhc_icon_options_badging@1x Badging to customer requirements
  • mhc_icon_options_lockable@1x Lockable to order with 2 or 4 stainless steel screws
  • mhc_icon_options_anti-terrorist@1x M.O.D. Anti-Terrorist high security locking bolts
  • mhc_icon_options_lifting keys@1x Lifting keys (MHC Ref. LK5200)
Available Sizes
Product code Clear Opening (mm) Over Frame (mm) Frame Depth (mm)
MHC-5140
450 x 450 532 x 532 42
MHC-5145
600 x 450 682 x 532 42
MHC-5155
600 x 600 682 x 682 42
MHC-5165
750 x 600 836 x 686 42
MHC-5175
900 x 600 986 x 686 44
Available Sizes
MHC-5140
Clear Opening (mm) 450 x 450
Over Frame (mm) 532 x 532
Frame Depth (mm) 42
MHC-5145
Clear Opening (mm) 600 x 450
Over Frame (mm) 682 x 532
Frame Depth (mm) 42
MHC-5155
Clear Opening (mm) 600 x 600
Over Frame (mm) 682 x 682
Frame Depth (mm) 42
MHC-5165
Clear Opening (mm) 750 x 600
Over Frame (mm) 836 x 686
Frame Depth (mm) 42
MHC-5175
Clear Opening (mm) 900 x 600
Over Frame (mm) 986 x 686
Frame Depth (mm) 44
Any questions, contact our expert team on 01296 668850
