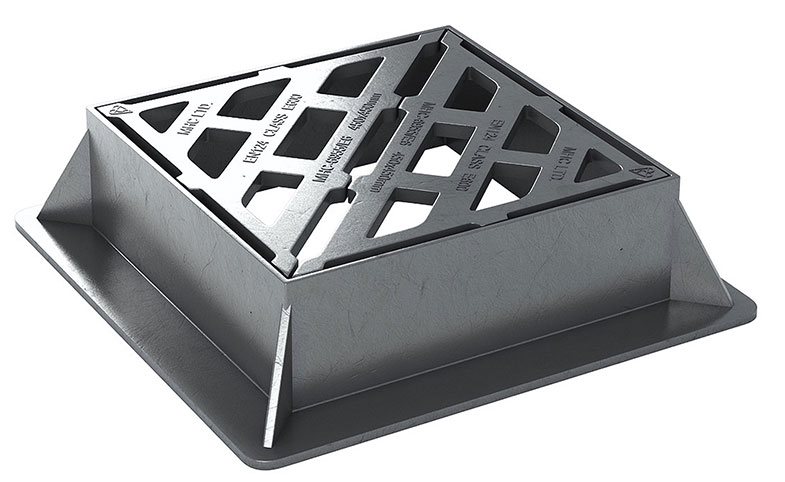

E600 Gully Grating (Extreme Traffic)

Extra Heavy Duty Ductile Iron Manufactured to BS:EN124 Class E600
mhc_icon_search_dark@1x
Enlarge
Product Details
Areas imposing exceptionally high wheel loads, e.g. docks, aircraft pavements.
mhc_icon_class_E600@1x
E600
60 Tonnes
mhc_icon_class_E600@1x
E600
60 Tonnes
Appropriate for extreme traffic, the E600 ductile iron gully grating is appropriate for motorways, docks and ports. Non-standard sizes available.
Specification
  • mhc_icon_check@1x Extreme Wheel Loads: Motorways, Heavy Industrial, Docks & Ports
  • mhc_icon_check@1x Manufactured to BS:EN124 Class E600
  • mhc_icon_check@1x 60 Tonne Safe Test Load
  • mhc_icon_check@1x Highways agency , HA104/09 compliant
  • mhc_icon_check@1x Double triangular three point suspension non-rock design
  • mhc_icon_check@1x Choice of BSI Kitemark or other EN124 third party accreditation
  • mhc_icon_check@1x 150mm deep frame
Options
  • mhc_icon_check@1x 3 Flange frame kerbside design
  • mhc_icon_check@1x 4 Flange frame stand alone design
  • mhc_icon_options_lockable@1x Gratings can be locked down for added security
  • mhc_icon_options_size Other non-standard sizes available
Available Sizes
Product code Clear Opening (mm) Over Frame (mm) Frame Depth (mm) Waterway (cm2) Flange Design
MHC-6955/E6
450 x 450 610 x 540 150 1100 2 3 sided
MHC-6956/E6
450 x 450 610 x 610 150 1100 2 4 sided
MHC-6985/E6
600 x 600 760 x 690 150 2300 3 sided
MHC-6986/E6
600 x 600 760 x 760 150 2300 4 sided
Available Sizes
MHC-6955/E6
Clear Opening (mm) 450 x 450
Over Frame (mm) 610 x 540
Frame Depth (mm) 150
Waterway (cm2) 1100 2
Flange Design 3 sided
MHC-6956/E6
Clear Opening (mm) 450 x 450
Over Frame (mm) 610 x 610
Frame Depth (mm) 150
Waterway (cm2) 1100 2
Flange Design 4 sided
MHC-6985/E6
Clear Opening (mm) 600 x 600
Over Frame (mm) 760 x 690
Frame Depth (mm) 150
Waterway (cm2) 2300
Flange Design 3 sided
MHC-6986/E6
Clear Opening (mm) 600 x 600
Over Frame (mm) 760 x 760
Frame Depth (mm) 150
Waterway (cm2) 2300
Flange Design 4 sided
Any questions, contact our expert team on 01296 668850
