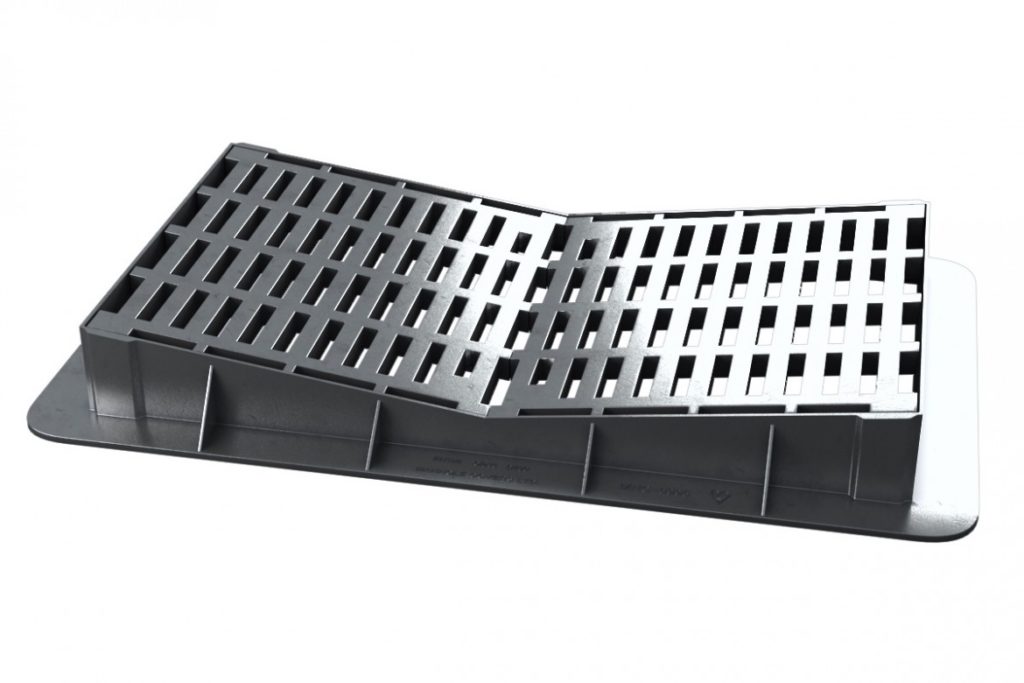

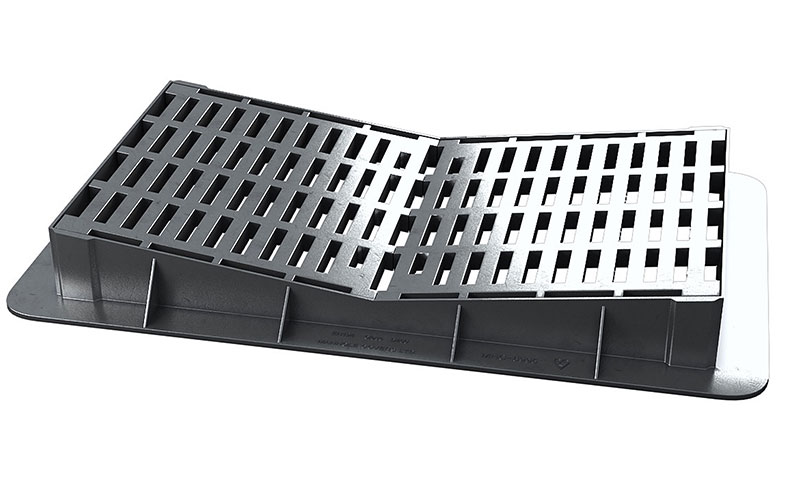

V-Profile Motorway Grating D400

V-Profile Motorway Gully Grating Parallel to Main Carriageways and Hard Shoulders (1:5 Profile)
mhc_icon_search_dark@1x
Enlarge
Product Details
For covers and gratings used in carriageways of roads (including pedestrian streets), hard shoulders and parking areas, for all types of road vehicles.
mhc_icon_class_D400@1x
D400
40 Tonnes
mhc_icon_class_D400@1x
D400
40 Tonnes

This gully grating for motorways (main carriageways and hard shoulders) complies with the Highways Agency Design Manual for Roads & Bridges Vol 4, Section 2, part 5. HA104/02.

+ SAVE TIME + SAVE LABOUR + SAVE MONEY + INCREASE DRAINAGE CAPACITY +

Specification
  • mhc_icon_check@1x Manufactured to BS:EN124 Class D400
  • mhc_icon_check@1x 40 Tonne Safe Test Load
  • mhc_icon_check@1x Complies with Highways Agency Design Manual for Roads & Bridges Vol 4, Section 2, part 5. HA104/02
  • mhc_icon_check@1x Additionally conforms to BS 7903
  • mhc_icon_check@1x Suitable for carriageway & fast moving traffic
  • mhc_icon_check@1x Works safety tested to +10% above EN 124 = 44 Tonnes
  • mhc_icon_check@1x Kitemarked for third party assurance of quality
  • mhc_icon_check@1x Non rock captive hinged design for increased stability & silent operation
  • mhc_icon_check@1x A.M.P. Anti movement technology for improved bonding to bedding material
  • mhc_icon_check@1x 80 / 125mm depth of grating insertion into frames
  • mhc_icon_check@1x 75mm solid bedding width
  • mhc_icon_check@1x Designed to suit 1:5 slip formed concrete channels
  • mhc_icon_check@1x Ductile iron for improved weight to strength ratio
  • mhc_icon_check@1x Black coated finish
Available Sizes
Product code Over Grate Frame Depth (mm) Overall Frame Waterway (cm2) Suits Gully HA102 Ref
MHC-6990
630 x 630 150 794 x 794 2380 600 p
MHC-6993
900 x 900 200 1060 x 1060 4831 600 p
MHC-6995
1200 x 675 150 1380 x 835 4715 600 p
MHC-6996
1200 x 675 200 1360 x 835 4197 600 p
Available Sizes
MHC-6990
Over Grate 630 x 630
Frame Depth (mm) 150
Overall Frame 794 x 794
Waterway (cm2) 2380
Suits Gully 600
HA102 Ref p
MHC-6993
Over Grate 900 x 900
Frame Depth (mm) 200
Overall Frame 1060 x 1060
Waterway (cm2) 4831
Suits Gully 600
HA102 Ref p
MHC-6995
Over Grate 1200 x 675
Frame Depth (mm) 150
Overall Frame 1380 x 835
Waterway (cm2) 4715
Suits Gully 600
HA102 Ref p
MHC-6996
Over Grate 1200 x 675
Frame Depth (mm) 200
Overall Frame 1360 x 835
Waterway (cm2) 4197
Suits Gully 600
HA102 Ref p
Any questions, contact our expert team on 01296 668850
