Forklift Loading Recessed Airtight Seal

Locked, (MHC-7300)
mhc_icon_search_dark@1x
Enlarge
Product Details
Special Application - Civil and military air field aprons, where particularly heavy wheel loads are imposed by aircraft and towing vehicles.
mhc_icon_class_E600@1x
FL
Special
mhc_icon_class_E600@1x
FL
Special

Application: Suitable for internal and external situations subject to forklift traffic or other abnormal loads. The 7300 Series accepts a concrete or tarmacadam infill.

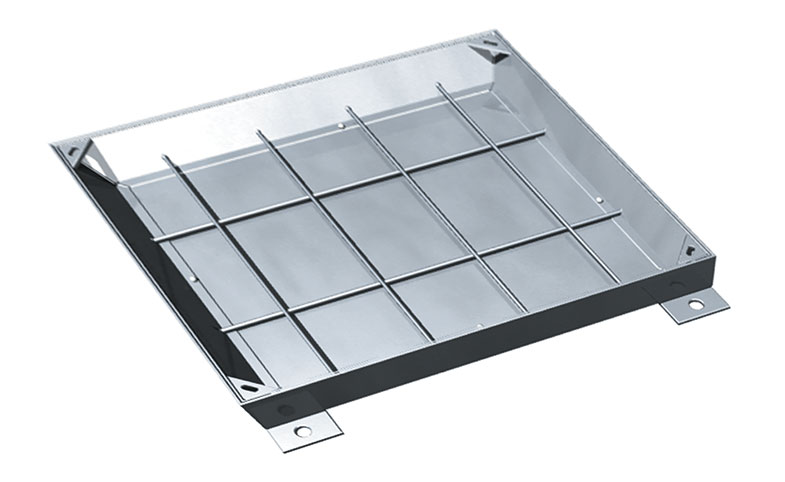

Construction: Comprises galvanised mild steel recessed cover and frame to enable concrete or tarmacadam infill. Solid steel base plate design prevents prior need for shuttering. Units manufactured from matching lid and substantial frame section. Keying in bars fitted inside recess. Locked units secured with 4 galvanised steel screws as standard. When unlocked, screw holes act as lifting eyes. Multiple units (see 7350 and 7350M Series) come complete with removable support beams. Double seal units are airtight. Supplied single seal as standard.

Finish: Hot dipped galvanised to BS EN ISO 1461 as standard.

Manufacture: ISO9001 Quality system. F.A.C.T.A. (Fabricated Access Cover Trade Association) member.

Load Rating: FL: Suitable for use in abnormal load or forklift areas and equivalent to 50Tonne Gross Laden Vehicle Weight. Units tested to 5 Tonnes through a 150mm dia. test block. Also capable of taking a 11.5 Tonne slow moving wheel load via a 250mm dia. test block.

‚ÄčOrdering: Please state required MHC Order Code and any optional extras i.e. MHC-7327/AK = 750x600mm/ Allen key head security screws.

Options
  • mhc_icon_options_seal Double seal = MHC order code suffix |DS
  • mhc_icon_options_lockable@1x Locking screws = MHC order code suffix |L
  • mhc_icon_options_lifting keys@1x Allen Key head security screws = suffix |AK
  • mhc_icon_options_anti-terrorist@1x Ministry of Defence approved security screws = MHC suffix |MOD
  • mhc_icon_check@1x Brass Edging = suffix |BE
  • mhc_icon_check@1x Stainless Steel Edging = MHC suffix |SSE
Available Sizes
Product code Clear Opening (mm) Over Frame (mm) Frame Depth (mm) Internal Tray Depth (mm)
MHC-7322
300 x 300 380 x 380 135 100
MHC-7323
450 x 450 530 x 530 135 100
MHC-7324
600 x 450 680 x 530 135 100
MHC-7325
600 x 600 680 x 680 135 100
MHC-7326
750 x 450 830 x 530 135 100
MHC-7327
750 x 600 830 x 680 135 100
MHC-7328
750 x 750 830 x 830 135 100
MHC-7329
900 x 450 980 x 530 135 100
MHC-7330
900 x 600 980 x 680 135 100
MHC-7331
900 x 750 980 x 830 135 100
MHC-7332
900 x 900 980 x 980 135 100
MHC-7333
1000 x 1000 1080 x 1080 135 100
Available Sizes
MHC-7322
Clear Opening (mm) 300 x 300
Over Frame (mm) 380 x 380
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-7323
Clear Opening (mm) 450 x 450
Over Frame (mm) 530 x 530
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-7324
Clear Opening (mm) 600 x 450
Over Frame (mm) 680 x 530
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-7325
Clear Opening (mm) 600 x 600
Over Frame (mm) 680 x 680
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-7326
Clear Opening (mm) 750 x 450
Over Frame (mm) 830 x 530
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-7327
Clear Opening (mm) 750 x 600
Over Frame (mm) 830 x 680
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-7328
Clear Opening (mm) 750 x 750
Over Frame (mm) 830 x 830
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-7329
Clear Opening (mm) 900 x 450
Over Frame (mm) 980 x 530
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-7330
Clear Opening (mm) 900 x 600
Over Frame (mm) 980 x 680
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-7331
Clear Opening (mm) 900 x 750
Over Frame (mm) 980 x 830
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-7332
Clear Opening (mm) 900 x 900
Over Frame (mm) 980 x 980
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
MHC-7333
Clear Opening (mm) 1000 x 1000
Over Frame (mm) 1080 x 1080
Frame Depth (mm) 135
Internal Tray Depth (mm) 100
Any questions, contact our expert team on 01296 668850
