Application: Suitable for internal and external situations subject to forklift traffic or other abnormal loads. The 7350 Series accepts a concrete or tarmacadam infill.

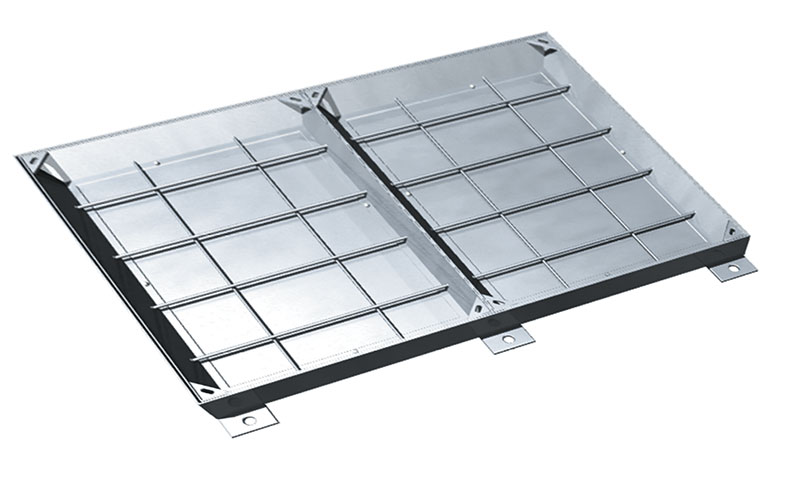

Construction: 2-Part unit complete with removable support beams and bolt on type support pockets. Comprises galvanised mild steel recessed cover and frame to enable concrete or tarmacadam infill. Solid steel base plate design prevents prior need for shuttering. Units manufactured from matching lid and substantial frame section. Keying in bars fitted inside recess. Locked units secured with 4 galvanised steel screws. When unlocked, screw holes act as lifting eyes. Double seal units are airtight. Supplied single seal unlocked as standard.
Finish: Hot dipped galvanised to BS EN ISO 1461 as standard.
Manufacture: ISO9001 Quality system. F.A.C.T.A. (Fabricated Access Cover Trade Association) member.
Load Rating: FL: Suitable for use in abnormal load or forklift areas and equivalent to 50Tonne Gross Laden Vehicle Weight. Units tested to 5 Tonnes through a 150mm dia. test block. Also capable of taking a 11.5 Tonne slow moving wheel load via a 250mm dia. test block.
Ordering: Please state required MHC Order Code and any optional extras i.e. MHC-7267/DS/AK = 1200x900mm/Double Seal /Allen key head security screws.
