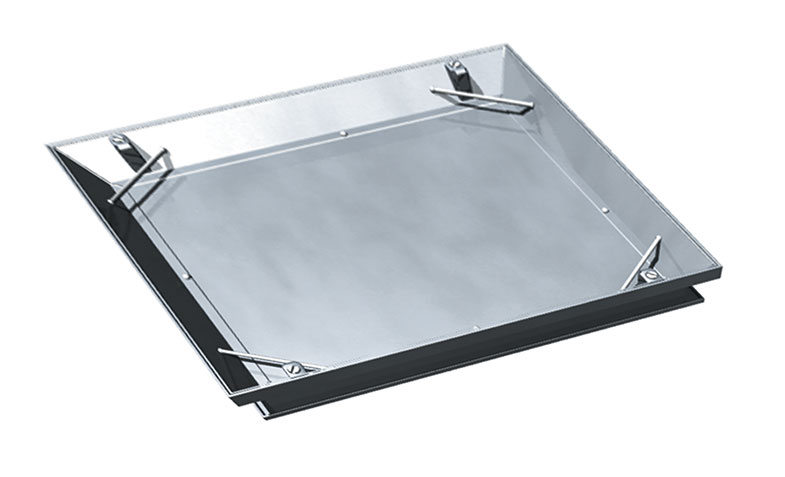

MHC-7100 Series Galvanised Steel Recessed Access Covers

Recessed Double Seal & Locking Access Cover
mhc_icon_search_dark@1x
Enlarge
Product Details
Areas with vehicular traffic up to 10 Tonnes (GLVW) or 2.5 Tonnes (SMWL) i.e. car parks and service areas, pedestrian areas where occasional vehicular access is likely.
mhc_icon_trolley_2
AAA
10 Tonnes
mhc_icon_trolley_2
AAA
10 Tonnes

Application: Suitable for internal and external situations where an aesthetic floor finish is important, the 7100 Series accepts most floor finish infills such as screed, tile, carpet tile and terazzo ( for carpet finishes we recommend the aluminium Alulite Series - please ask the sales office for details).

Construction: Comprises galvanised mild steel recessed cover and frame to enable concrete or floor finish infill. Solid steel base plate design prevents prior need for shuttering. Units manufactured from matching lid and frame section. Keying-in bars fitted inside recess. Locked units secured with 4 galvanised steel screws. When unlocked screw holes act as lifting eyes. Multiple units (see 7150 and 7150M Series) come complete with removable support beams. Double seal units are airtight. Single units supplied locked as standard.

Finish: Hot dipped galvanised to BS EN ISO 1461 as standard.

Manufacture: ISO9001 Quality system. F.A.C.T.A. (Fabricated Access Cover Trade Association) member.

Load Rating: F.A.C.T.A. Class AAA - 10 Tonne G.L.V.W. (Gross Laden Vehicle Weight). Full loading achieved infilled with Grade C25 concrete.

Ordering: Please state required MHC Order Code and any optional extras i.e. MHC-7125/DS/L = 600x600mm/Double Seal/Locked

Options
  • mhc_icon_options_seal Double seal = MHC order code suffix | DS
  • mhc_icon_options_lockable@1x Locking screw = MHC order code suffix | L
  • mhc_icon_options_lifting keys@1x Allen key head security screws = suffix | AK
  • mhc_icon_options_anti-terrorist@1x Ministry of Defence approved security screws = MHC suffix | MOD
  • mhc_icon_check@1x Brass Edging = suffix | BE
  • mhc_icon_check@1x Stainless Steel Edging = MHC suffix | SSE
Available Sizes
Product code Clear Opening (mm) Over Frame (mm) Frame Depth (mm) Internal Tray Depth (mm)
MHC-7122/DSL
300 x 300 380 x 380 58 45
MHC-7123/DSL
450 x 450 530 x 530 58 45
MHC-7124/DSL
600 x 450 680 x 530 58 45
MHC-7125/DSL
600 x 600 680 x 680 58 45
MHC-7126/DSL
750 x 450 830 x 530 58 45
MHC-7127/DSL
750 x 600 830 x 680 58 45
MHC-7128/DSL
750 x 750 830 x 830 58 45
MHC-7129/DSL
900 x 450 980 x 530 58 45
MHC-7130/DSL
900 x 600 980 x 680 58 45
MHC-7131/DSL
900 x 750 980 x 830 58 45
MHC-7132/DSL
900 x 900 980 x 980 58 45
MHC-7133/DSL
1000 x 1000 1080 x 1080 58 45
Available Sizes
MHC-7122/DSL
Clear Opening (mm) 300 x 300
Over Frame (mm) 380 x 380
Frame Depth (mm) 58
Internal Tray Depth (mm) 45
MHC-7123/DSL
Clear Opening (mm) 450 x 450
Over Frame (mm) 530 x 530
Frame Depth (mm) 58
Internal Tray Depth (mm) 45
MHC-7124/DSL
Clear Opening (mm) 600 x 450
Over Frame (mm) 680 x 530
Frame Depth (mm) 58
Internal Tray Depth (mm) 45
MHC-7125/DSL
Clear Opening (mm) 600 x 600
Over Frame (mm) 680 x 680
Frame Depth (mm) 58
Internal Tray Depth (mm) 45
MHC-7126/DSL
Clear Opening (mm) 750 x 450
Over Frame (mm) 830 x 530
Frame Depth (mm) 58
Internal Tray Depth (mm) 45
MHC-7127/DSL
Clear Opening (mm) 750 x 600
Over Frame (mm) 830 x 680
Frame Depth (mm) 58
Internal Tray Depth (mm) 45
MHC-7128/DSL
Clear Opening (mm) 750 x 750
Over Frame (mm) 830 x 830
Frame Depth (mm) 58
Internal Tray Depth (mm) 45
MHC-7129/DSL
Clear Opening (mm) 900 x 450
Over Frame (mm) 980 x 530
Frame Depth (mm) 58
Internal Tray Depth (mm) 45
MHC-7130/DSL
Clear Opening (mm) 900 x 600
Over Frame (mm) 980 x 680
Frame Depth (mm) 58
Internal Tray Depth (mm) 45
MHC-7131/DSL
Clear Opening (mm) 900 x 750
Over Frame (mm) 980 x 830
Frame Depth (mm) 58
Internal Tray Depth (mm) 45
MHC-7132/DSL
Clear Opening (mm) 900 x 900
Over Frame (mm) 980 x 980
Frame Depth (mm) 58
Internal Tray Depth (mm) 45
MHC-7133/DSL
Clear Opening (mm) 1000 x 1000
Over Frame (mm) 1080 x 1080
Frame Depth (mm) 58
Internal Tray Depth (mm) 45
Any questions, contact our expert team on 01296 668850
