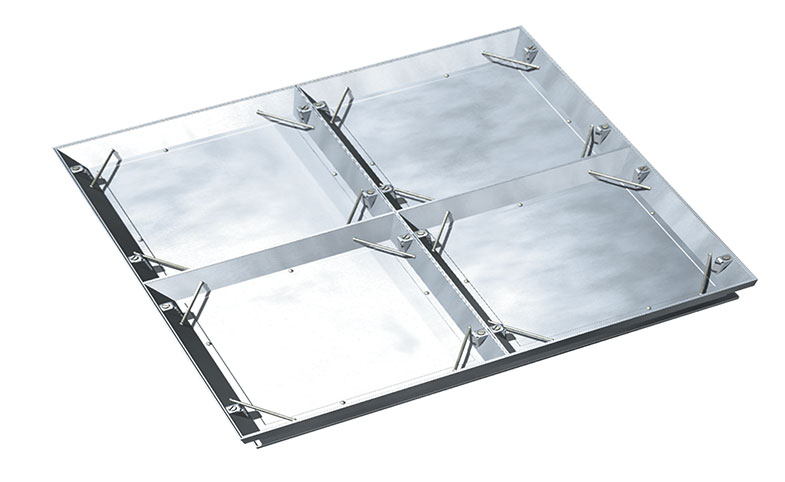

MHC-7150M Series Multiple-Leaf Recessed Access Cover

Multiple-Leaf Recessed Double Seal & Locking Access Cover
mhc_icon_search_dark@1x
Enlarge
Product Details
Areas with vehicular traffic up to 10 Tonnes (GLVW) or 2.5 Tonnes (SMWL) i.e. car parks and service areas, pedestrian areas where occasional vehicular access is likely.
mhc_icon_trolley_2
AAA
10 Tonnes
mhc_icon_trolley_2
AAA
10 Tonnes

Application: Suitable for internal and external situations where an aesthetic finish is important, the 7150M Series of access covers accepts most floor finish infills such as screed, tile, and terazzo (for carpet finishes we recommend our aluminium Elite Range of access covers - please ask the sales office for details).

Construction: Multiple unit access cover complete with removable support beams and bolt on type support pockets. Comprises galvanised mild steel recessed access cover and frame to enable concrete or floor finish infill. Solid steel base plate design prevents prior need for shuttering. Units manufactured from matching lid and frame section. Keying in bars fitted inside recess. Locked units secured with 4 galvanised steel screws. When unlocked screw holes act as lifting eyes. All units are airtight and supplied single seal as standard.

Finish: Hot dipped galvanised to BS EN ISO 1461 as standard.

Manufacture: ISO9001 Quality system. F.A.C.T.A. (Fabricated Access Cover Trade Association) member.

Load Rating: F.A.C.T.A. Class AAA - 10 Tonne G.L.V.W. (Gross Laden Vehicle Weight). Full loading achieved infilled with Grade C25 concrete.

Ordering: Please state required MHC Order Code 7150M followed by required clear opening size and any optional extras i.e. MHC-7150M/3000x2000mm/MOD = 3000x2000mm/Locked with Ministry of Defence approved security screws.

Options
  • mhc_icon_options_seal Double seal = MHC order code suffix |DS
  • mhc_icon_options_lockable@1x Locking screws = MHC order code suffix |L
  • mhc_icon_options_lifting keys@1x Allen key head security screws = suffix |AK
  • mhc_icon_options_anti-terrorist@1x Ministry of Defence approved security screws = MHC suffix |MOD
  • mhc_icon_check@1x Brass Edging = suffix /BE
  • mhc_icon_check@1x Stainless Steel Edging = MHC suffix |SSE
Available Sizes
Product code Clear Opening (mm) Over Frame (mm) Frame Depth (mm) Internal Tray Depth (mm)
MHC-7150M
xxx x xxx c 0 80mm 58 45
Available Sizes
MHC-7150M
Clear Opening (mm) xxx x xxx
Over Frame (mm) c 0 80mm
Frame Depth (mm) 58
Internal Tray Depth (mm) 45
Any questions, contact our expert team on 01296 668850
