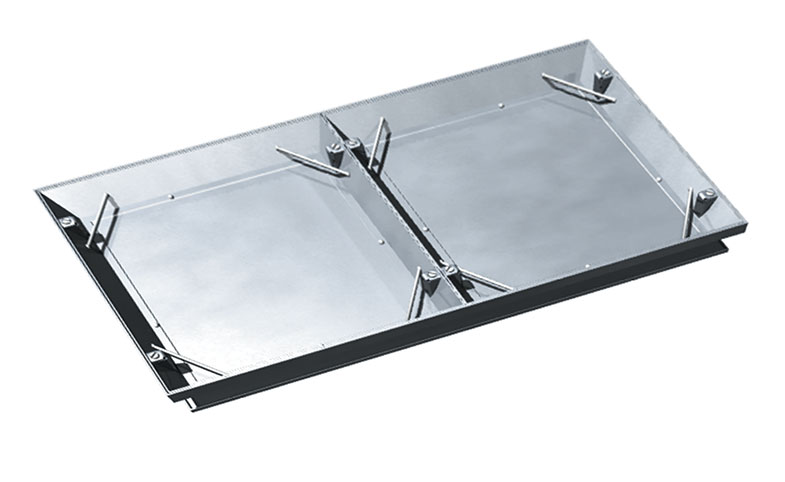

MHC-7150 Series 2-Part Galvanised Steel Recessed Access Covers

2-Part Recessed Double Seal & Locking Access Cover
mhc_icon_search_dark@1x
Enlarge
Product Details
Areas with vehicular traffic up to 10 Tonnes (GLVW) or 2.5 Tonnes (SMWL) i.e. car parks and service areas, pedestrian areas where occasional vehicular access is likely.
mhc_icon_trolley_2
AAA
10 Tonnes
mhc_icon_trolley_2
AAA
10 Tonnes

Application: Suitable for internal and external situations where an aesthetic is important, the 7150 Series accepts most floor finish infills such as screed, tile, and terazzo (for carpets finishes we recommend the aluminium Alulite Series - please ask the sales office for details).

Construction: 2-Part unit complete with removable support beams and bolt on type support pockets. Comprises galvanised mild steel recessed cover and frame to enable concrete or floor finish infill. Solid steel base plate design prevents prior need for shuttering. Units manufactured from matching lid and frame section. Keying in bars fitted inside recess. Locked units secured with 4 galvanised steel screws holes act as lifting eyes. All units are airtight and supplied single seal as standard.

Finish: Hot dipped galvanised to BS EN ISO 1461 as standard.

Manufacture: ISO9001 Quality system. F.A.C.T.A. (Fabricated Access Cover Vehicle Weight) member.

Load Rating: F.A.C.T.A. Class AAA - 10 Tonne G.L.V.W. (Gross Laden Vehicle Weight). Full loading achieved infilled with Grade C25 concrete.

Ordering: Please state required MHC Order Code and any optinal extras i.e. MHC-7171/DS/L = 1800x600mm/Double Seal/Locking.

Options
  • mhc_icon_options_seal Double seal = MHC order code suffix |DS
  • mhc_icon_options_lockable@1x Locking screws = MHC order code suffix |L
  • mhc_icon_options_lifting keys@1x Allen key head security screws = suffix |AK
  • mhc_icon_options_anti-terrorist@1x Ministry of Defence approved security screws = MHC suffix |MOD
  • mhc_icon_check@1x Brass Edging = suffix |BE
  • mhc_icon_check@1x Stainless Steel Edging = MHC suffix |SSE
Available Sizes
Product code Clear Opening (mm) Over Frame (mm) Frame Depth (mm) Internal Tray Depth (mm)
MHC-7165
1200 x 600 1280 x 680 58 45
MHC-7166
1200 x 750 1280 x 830 58 45
MHC-7167
1200 x 900 1280 x 980 58 45
MHC-7168
1500 x 600 1580 x 680 58 45
MHC-7169
1500 x 750 1580 x 830 58 45
MHC-7170
1500 x 900 1580 x 980 58 45
MHC-7171
1800 x 600 1880 x 680 58 45
MHC-7172
1800 x 750 1880 x 830 58 45
MHC-7173
1800 x 900 1880 x 980 58 45
Available Sizes
MHC-7165
Clear Opening (mm) 1200 x 600
Over Frame (mm) 1280 x 680
Frame Depth (mm) 58
Internal Tray Depth (mm) 45
MHC-7166
Clear Opening (mm) 1200 x 750
Over Frame (mm) 1280 x 830
Frame Depth (mm) 58
Internal Tray Depth (mm) 45
MHC-7167
Clear Opening (mm) 1200 x 900
Over Frame (mm) 1280 x 980
Frame Depth (mm) 58
Internal Tray Depth (mm) 45
MHC-7168
Clear Opening (mm) 1500 x 600
Over Frame (mm) 1580 x 680
Frame Depth (mm) 58
Internal Tray Depth (mm) 45
MHC-7169
Clear Opening (mm) 1500 x 750
Over Frame (mm) 1580 x 830
Frame Depth (mm) 58
Internal Tray Depth (mm) 45
MHC-7170
Clear Opening (mm) 1500 x 900
Over Frame (mm) 1580 x 980
Frame Depth (mm) 58
Internal Tray Depth (mm) 45
MHC-7171
Clear Opening (mm) 1800 x 600
Over Frame (mm) 1880 x 680
Frame Depth (mm) 58
Internal Tray Depth (mm) 45
MHC-7172
Clear Opening (mm) 1800 x 750
Over Frame (mm) 1880 x 830
Frame Depth (mm) 58
Internal Tray Depth (mm) 45
MHC-7173
Clear Opening (mm) 1800 x 900
Over Frame (mm) 1880 x 980
Frame Depth (mm) 58
Internal Tray Depth (mm) 45
Any questions, contact our expert team on 01296 668850
