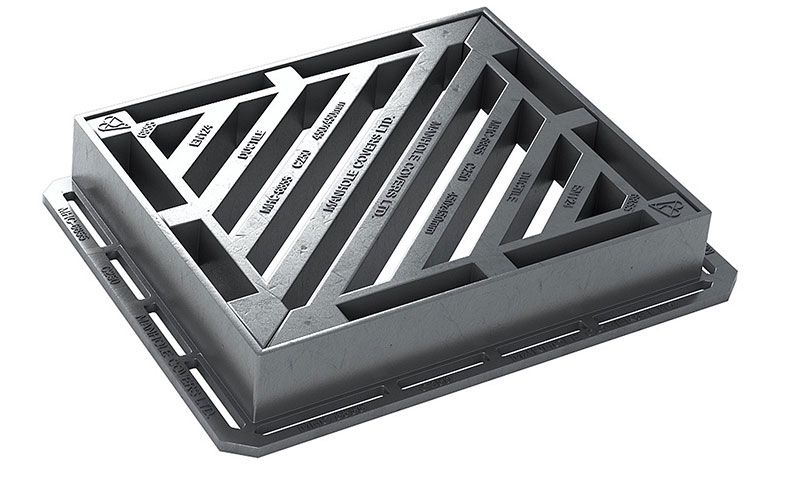

C250 Gully Gratings Double Triangular

Heavy Duty Ductile Iron Manufactured to BS:EN124 Class C250
mhc_icon_search_dark@1x
Enlarge
Product Details
For gully gratings installed in the area of kerbside channels of roads. This area extends from a maximum of 0.5m into a carriageway to a maximum of 0.2m into the footway. Recommended for minor roads/areas of slow moving traffic.
mhc_icon_class_C250@1x
C250
25 Tonnes
mhc_icon_class_C250@1x
C250
25 Tonnes
These double triangular gully gratings have a three point suspension and non-rock design. They are appropriate for car parks, slow moving heavy traffic and carriageways in some cases.
Specification
  • mhc_icon_check@1x Manufactured to BS:EN124 Class C250
  • mhc_icon_check@1x 25 Tonne Safe Test Load
  • mhc_icon_check@1x Suitable for car parks and slow moving heavy traffic
  • mhc_icon_check@1x Also suitable for carriageways but not exceeding 500mm from kerbsides
  • mhc_icon_check@1x Double triangular three point suspension non-rock design
  • mhc_icon_check@1x BSI Kitemark
  • mhc_icon_check@1x Three flanges enable frame to butt to kerbside where required
  • mhc_icon_check@1x 75mm deep frame
Available Sizes
Product code Clear Opening (mm) Over Frame (mm) Frame Depth (mm) Waterway (cm2)
MHC-6855
445 x 445 535 x 500 75 950
Available Sizes
MHC-6855
Clear Opening (mm) 445 x 445
Over Frame (mm) 535 x 500
Frame Depth (mm) 75
Waterway (cm2) 950
Any questions, contact our expert team on 01296 668850
