For gully gratings installed in the area of kerbside channels of roads. This area extends from a maximum of 0.5m into a carriageway to a maximum of 0.2m into the footway. Recommended for minor roads/areas of slow moving traffic.
C250
25 Tonnes
C250
25 Tonnes

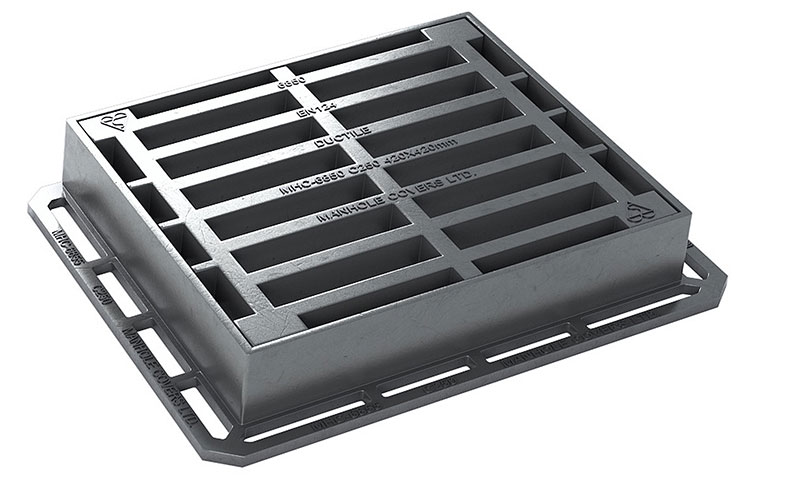

This heavy duty ductile iron gully grating has a wedge seated, non-rock design and is suitable for car parks, slow moving heavy traffic and carriageways in some cases.
Specification
Manufactured to BS:EN124 Class C250
25 Tonne Safe Test Load
Suitable for car parks and slow moving heavy traffic
Also suitable for carriageways but not exceeding 500mm from kerbsides
Wedge seated non-rock design
Anti-theft captive hinge
BSI Kitemark
75mm deep frame
Options
Gratings can be locked down into frames for added security
Available Sizes
Product code
Clear Opening (mm)
Over Frame (mm)
Frame Depth (mm)
Waterway (cm2)
MHC-6822
320 x 300
469 x 399
75
692
MHC-6840
380 x 310
472 x 370
75
764
MHC-6850
420 x 420
520 x 480
75
1100
MHC-6870
500 x 350
653 x 432
75
1052
Available Sizes
MHC-6822
Clear Opening (mm)
320 x 300
Over Frame (mm)
469 x 399
Frame Depth (mm)
75
Waterway (cm2)
692
MHC-6840
Clear Opening (mm)
380 x 310
Over Frame (mm)
472 x 370
Frame Depth (mm)
75
Waterway (cm2)
764
MHC-6850
Clear Opening (mm)
420 x 420
Over Frame (mm)
520 x 480
Frame Depth (mm)
75
Waterway (cm2)
1100
MHC-6870
Clear Opening (mm)
500 x 350
Over Frame (mm)
653 x 432
Frame Depth (mm)
75
Waterway (cm2)
1052
