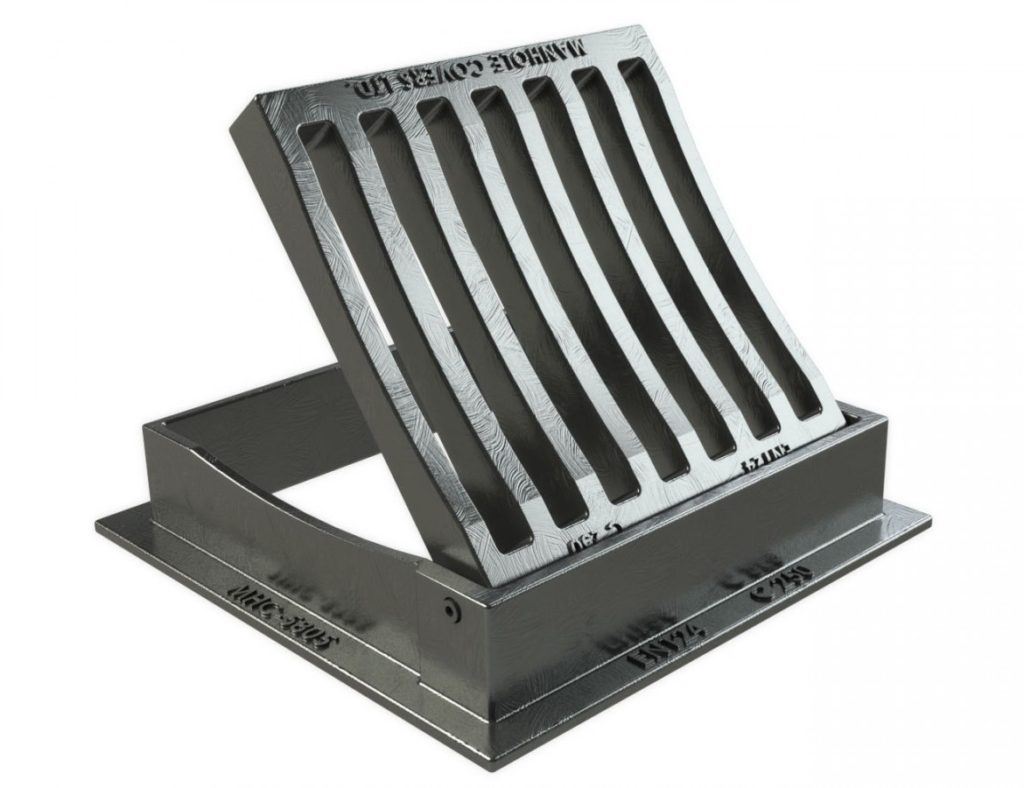

C250 Gully Gratings Hinged & Dished

Heavy Duty Ductile Iron Manufactured to BS:EN124 Class C250
mhc_icon_search_dark@1x
Enlarge
Product Details
For gully gratings installed in the area of kerbside channels of roads. This area extends from a maximum of 0.5m into a carriageway to a maximum of 0.2m into the footway. Recommended for minor roads/areas of slow moving traffic.
mhc_icon_class_C250@1x
C250
25 Tonnes
mhc_icon_class_C250@1x
C250
25 Tonnes
This hinged and dished gully grating has a 25 tonne safe test load and can be locked down for added security.
Specification
  • mhc_icon_check@1x Manufactured to BS:EN124 Class C250
  • mhc_icon_check@1x 25 Tonne Safe Test Load
  • mhc_icon_check@1x Dished profile grating
  • mhc_icon_check@1x Anti-theft captive hinge
  • mhc_icon_check@1x Choice of BSI Kitemark or other EN124 third party quality assurance accreditation
Options
  • mhc_icon_options_lockable@1x Gratings can be locked down for added security
Available Sizes
Product code Clear Opening (mm) Base Size (mm) Frame Depth (mm) Waterway (cm2)
MHC-6801
225 x 225 300 x 300 80 275
MHC-6805
300 x 300 375 x 375 80 500
Available Sizes
MHC-6801
Clear Opening (mm) 225 x 225
Base Size (mm) 300 x 300
Frame Depth (mm) 80
Waterway (cm2) 275
MHC-6805
Clear Opening (mm) 300 x 300
Base Size (mm) 375 x 375
Frame Depth (mm) 80
Waterway (cm2) 500
Any questions, contact our expert team on 01296 668850
