Application: Suitable for internal and external domestic situations requiring a standard size solid top access cover and frame. Pedestrian versions have hand lifts that negate the need for lifting keys.

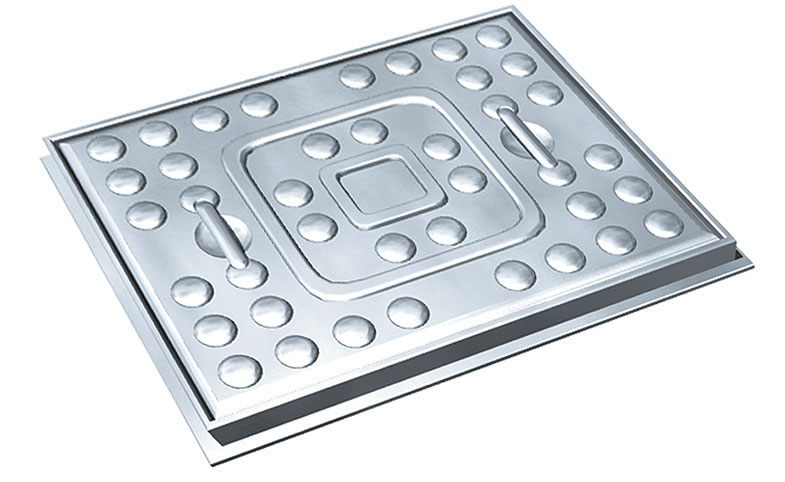

Construction: Pressed steel pattern lid underbraced to meet standard loadings. Supported lid set in a 25mm deep single or double seal frame section. Double seal versions locked with 4 galvanised steel screws. For ease of access in domestic situations pedestrian load versions have hand lifts. All other versions come with standard lifting eyes.
Finish: Hot dipped galvanised to BS EN ISO 1461 as standard.
Manufacture: Pressed steel products do not conform to F.A.C.T.A specifications. For a F.A.C.T.A. specification solid top access cover and frame manufactured under the ISO 9001 quality system - see 9100 Series.
Load Ratings: Pedestrian duty, 5T, 10T, 17T and 25T.
​Ordering: Please state required MHC Order Code and any optional extras i.e. MHC-9014/DSL = 600x450mm 5T/Double Seal & Locking.
| Product code | Clear Opening (mm) | Over Frame (mm) | Frame Depth (mm) | Seal Type | Loading |
MHC-9003 |
450 x 450 | 490 x 490 | 25 | single seal | pedestrian |
MHC-9003/DSL |
450 x 450 | 490 x 490 | 25 | double seal | pedestrian |
MHC-9004 |
600 x 450 | 640 x 490 | 25 | single seal | pedestrian |
MHC-9004/DSL |
600 x 450 | 640 x 490 | 25 | double seal | pedestrian |
MHC-9005 |
600 x 600 | 640 x 640 | 25 | single seal | pedestrian |
MHC-9005/DSL |
600 x 600 | 640 x 640 | 25 | double seal | pedestrian |
MHC-9013 |
450 x 450 | 490 x 490 | 25 | single seal | 5 tonne |
MHC-9013/DSL |
450 x 450 | 490 x 490 | 25 | double seal | 5 tonne |
MHC-9014 |
600 x 450 | 640 x 490 | 25 | single seal | 5 tonne |
MHC-9014/DSL |
600 x 450 | 640 x 490 | 25 | double seal | 5 tonne |
MHC-9015 |
600 x 600 | 640 x 640 | 25 | single seal | 5 tonne |
MHC-9015/DSL |
600 x 600 | 640 x 640 | 25 | double seal | 5 tonne |
MHC-9023 |
450 x 450 | 490 x 490 | 25 | single seal | 10 tonne |
MHC-9023/DSL |
450 x 450 | 490 x 490 | 25 | double seal | 10 tonne |
MHC-9024 |
600 x 450 | 640 x 490 | 25 | single seal | 10 tonne |
MHC-9024/DSL |
600 x 450 | 640 x 490 | 25 | double seal | 10 tonne |
MHC-9025 |
600 x 600 | 640 x 640 | 25 | single seal | 10 tonne |
MHC-9025/DSL |
600 x 600 | 640 x 640 | 25 | double seal | 10 tonne |
MHC-9034 |
600 x 450 | 640 x 490 | 25 | single seal | 17 tonne |
MHC-9034/DSL |
600 x 450 | 640 x 490 | 25 | double seal | 17 tonne |
MHC-9035 |
600 x 600 | 640 x 640 | 25 | single seal | 17 tonne |
MHC-9035/DSL |
600 x 600 | 640 x 640 | 25 | double seal | 17 tonne |
MHC-9044 |
600 x 450 | 640 x 490 | 25 | single seal | 25 tonne |
MHC-9044/DSL |
600 x 450 | 640 x 490 | 25 | double seal | 25 tonne |
MHC-9045 |
600 x 600 | 640 x 640 | 25 | single seal | 25 tonne |
MHC-9045/DSL |
600 x 600 | 640 x 640 | 25 | double seal | 25 tonne |
